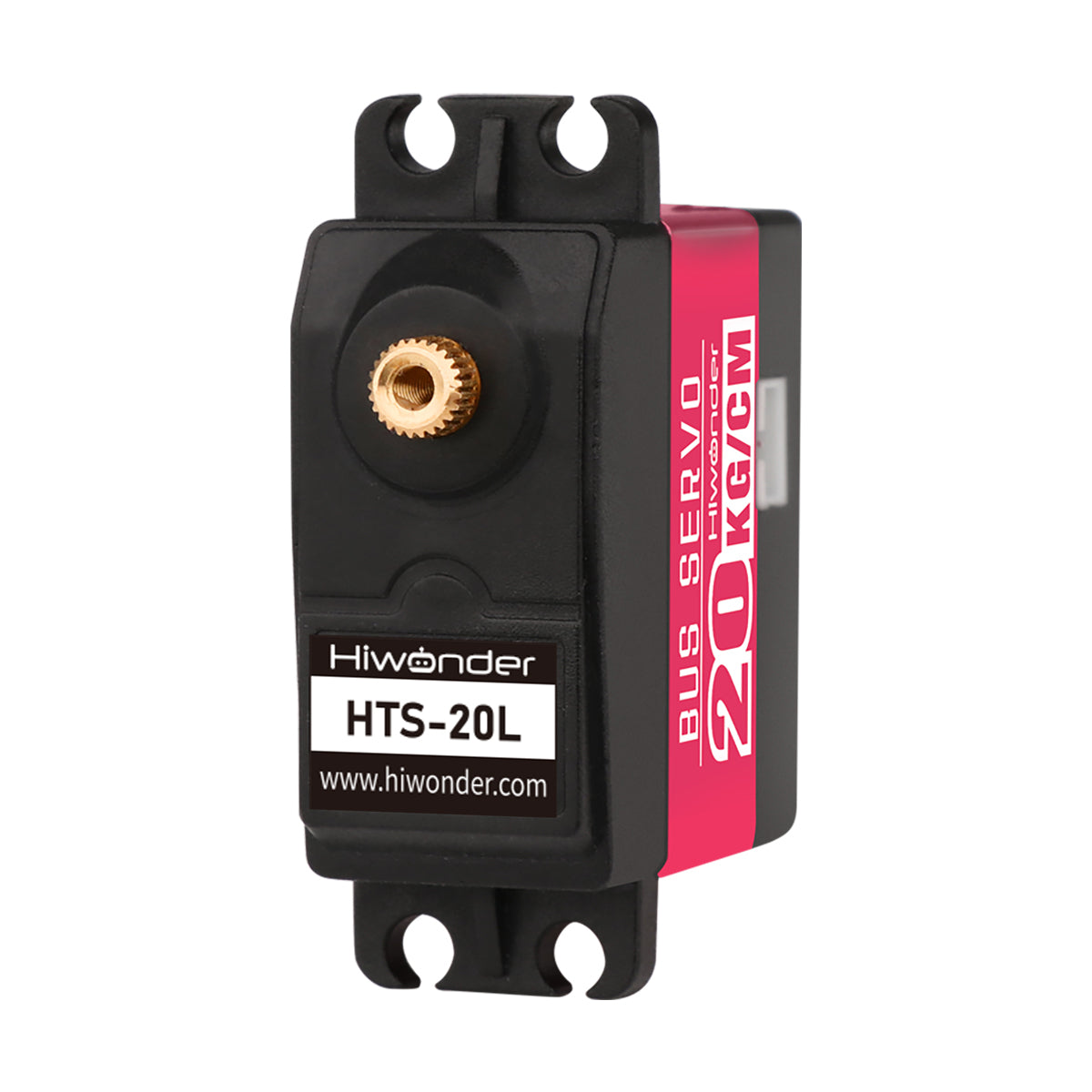

- Single shaft serial bus intelligent servo
- 20kg Strong Torque with metal gear
- Equipped with position/temperature/voltage feedback
- User-friendly connector
Available:
Only 9934 items in stock
In stock
In stock
Out of stock
Back in stock
$16.99
Save
% $-16.99
Product Description

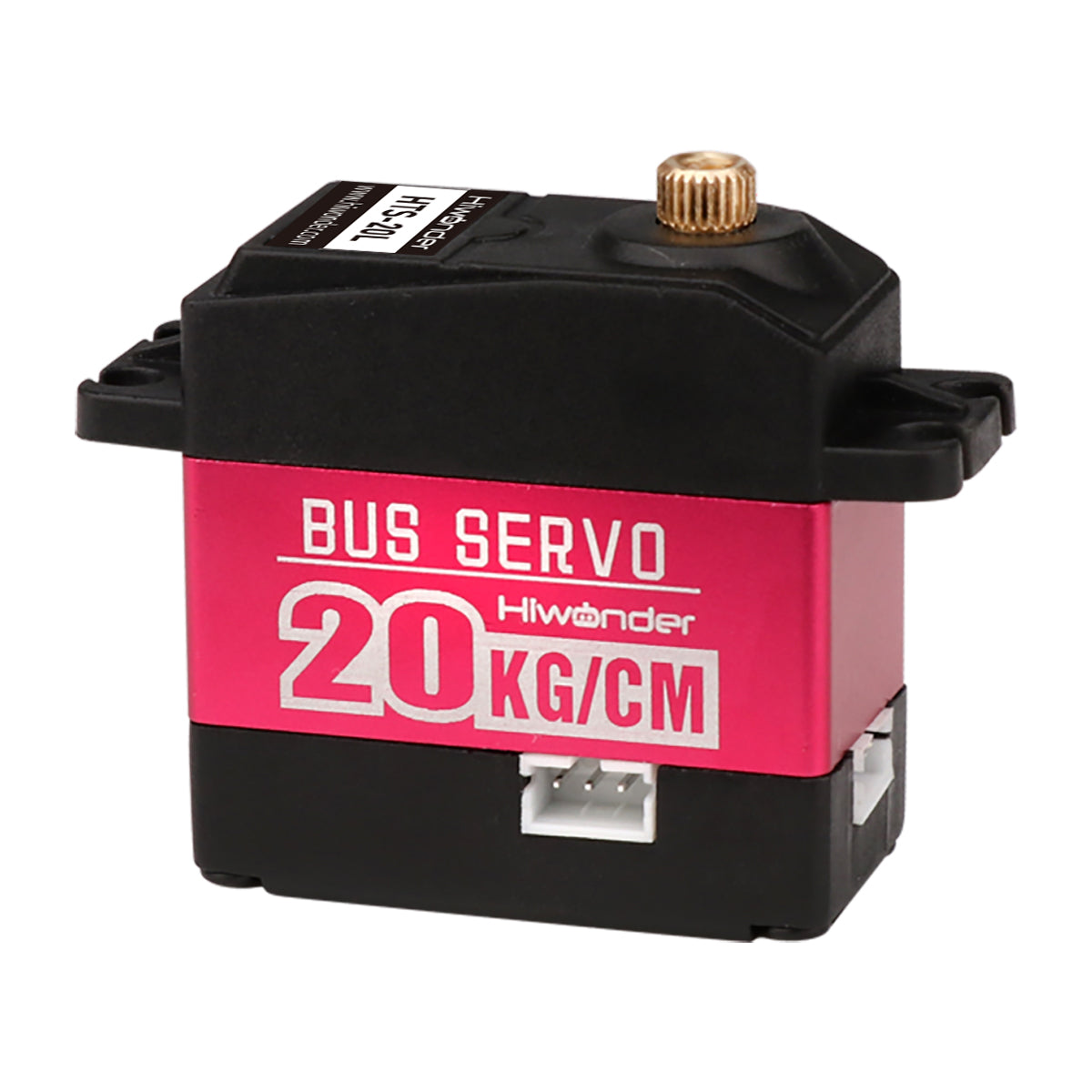

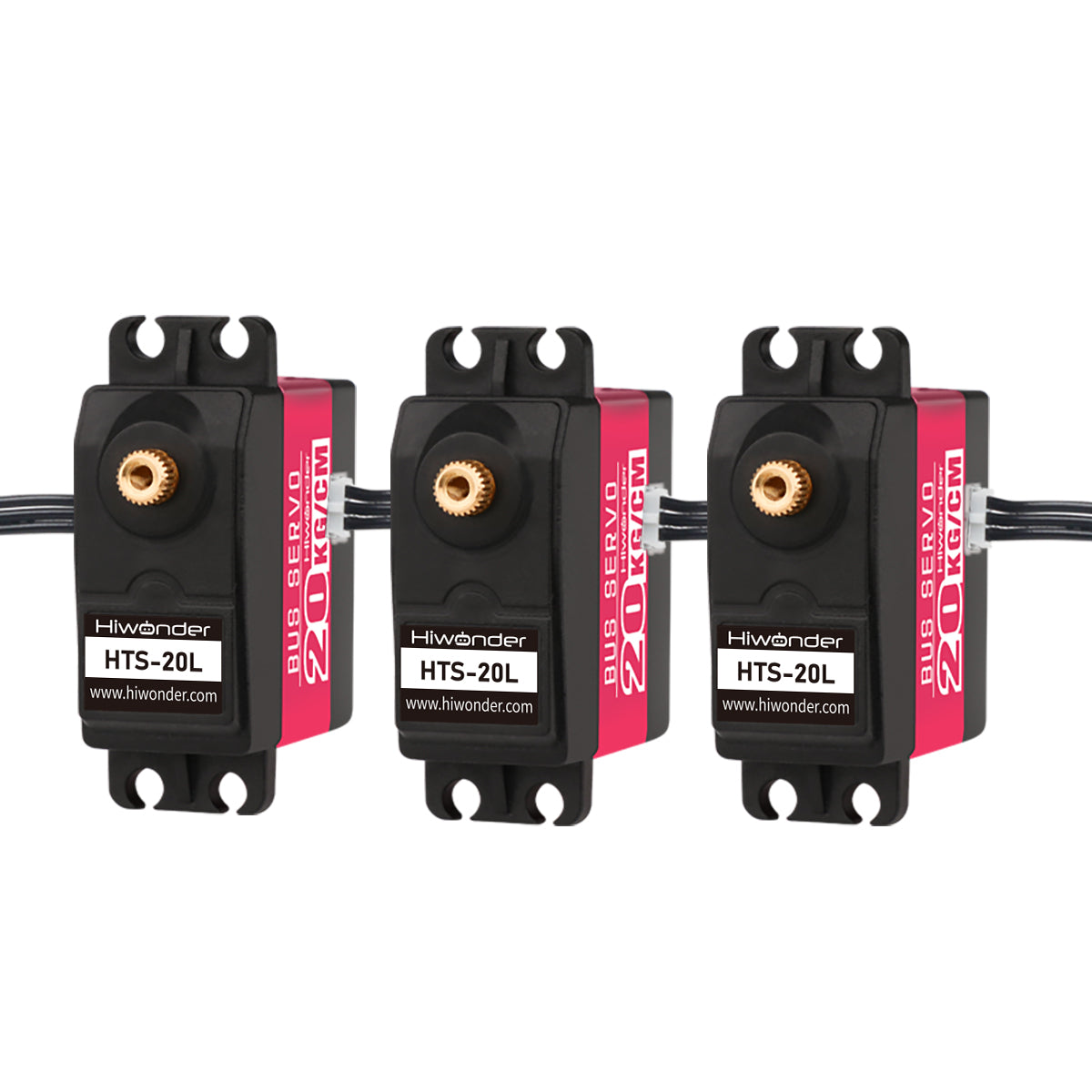

This three connectors serial bus smart servo possess 20KG torque and adopts all-metal gears inside, strong and durable. It can be controlled by serial port commands, connected multiple servos at the same time, which can help us create robotic arms and bionic robots. Compared with ordinary servos on the market, it can reading back the angle and faceback voltage, temperature position parameter.
Feature
- Equipped with position/temperature/voltage feedback, protect the servo from burning

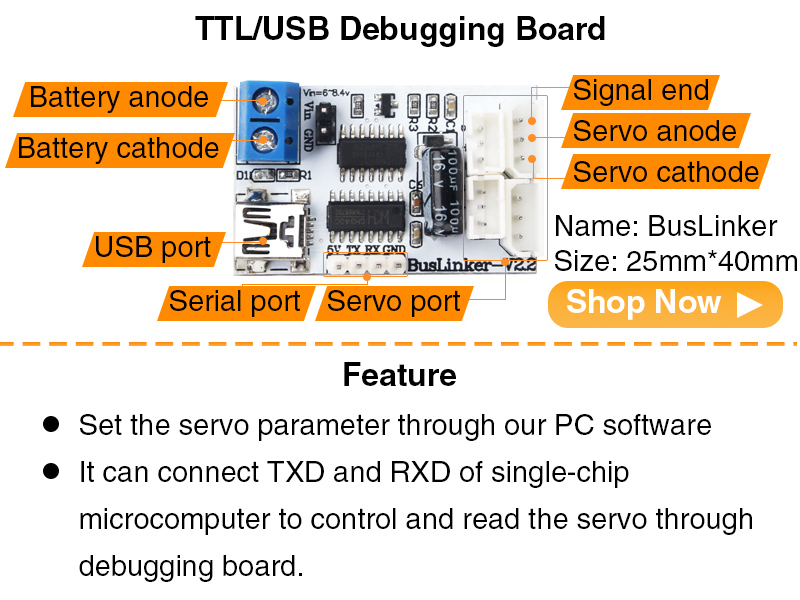

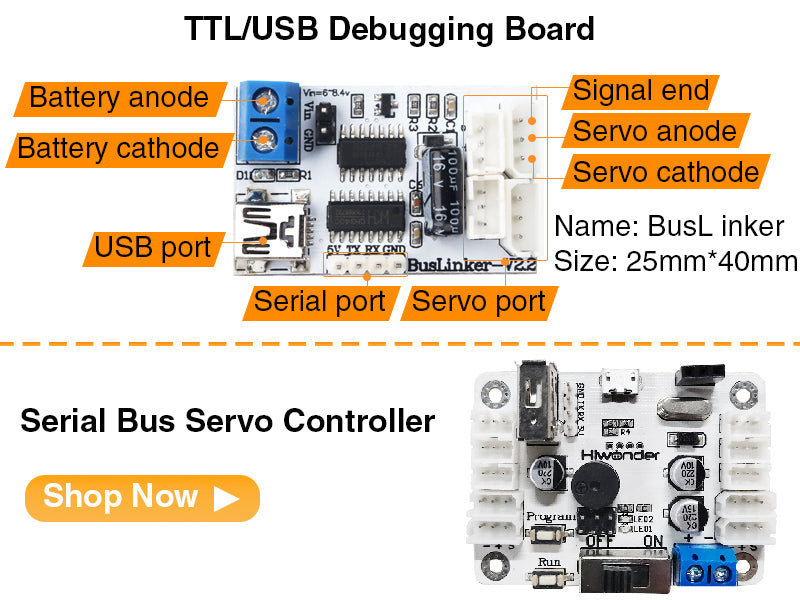

- With the TTL/USB debugging board, you can set the servo through the provided PC software
- High-precision potentiometer for more stable operation
- Provide bus servo communication protocol, 51, Arduino and STM32 source code

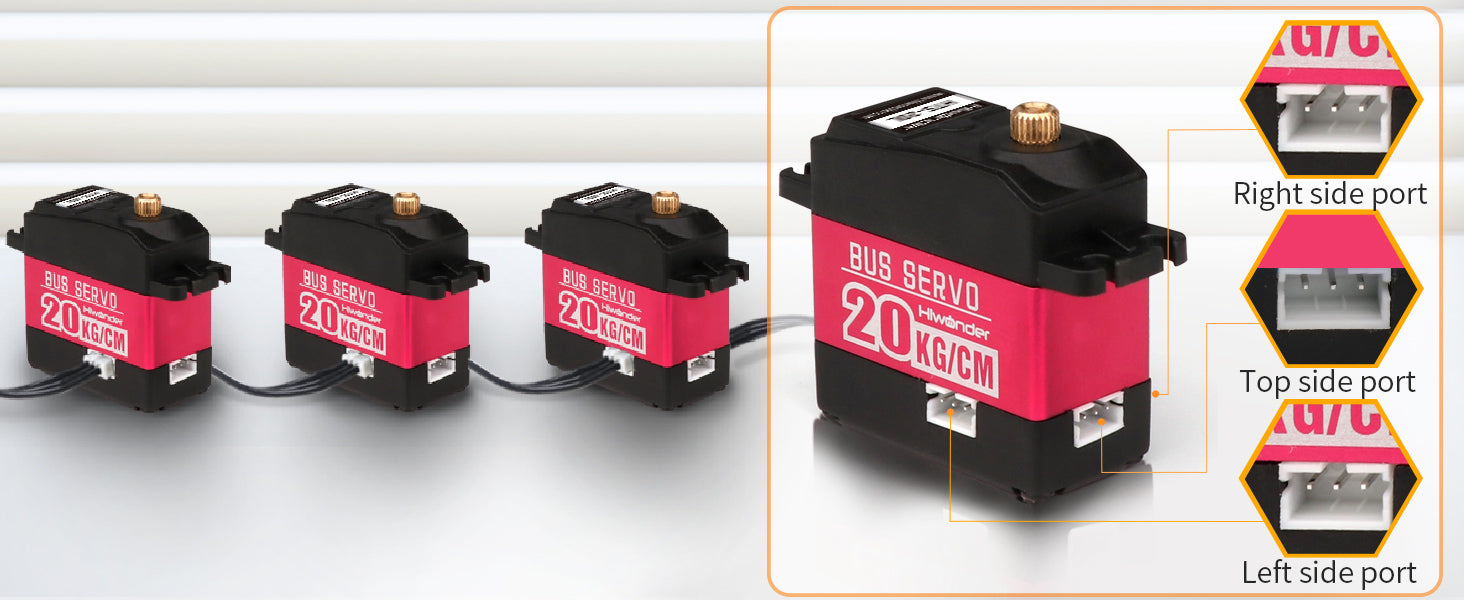

Clean Wiring
There are 3 ports for you to connect which makes the project have clean wiring and beautiful outlook.

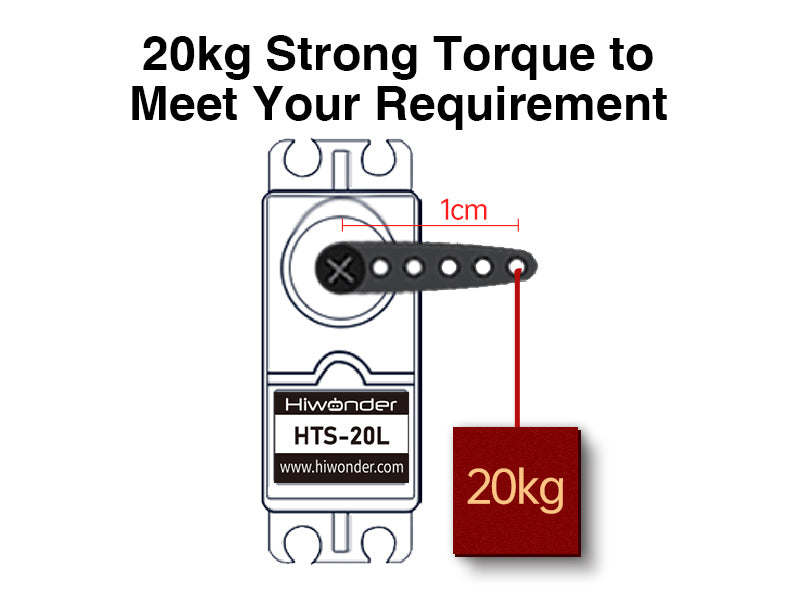

Powerful Torque
All Metal Gear

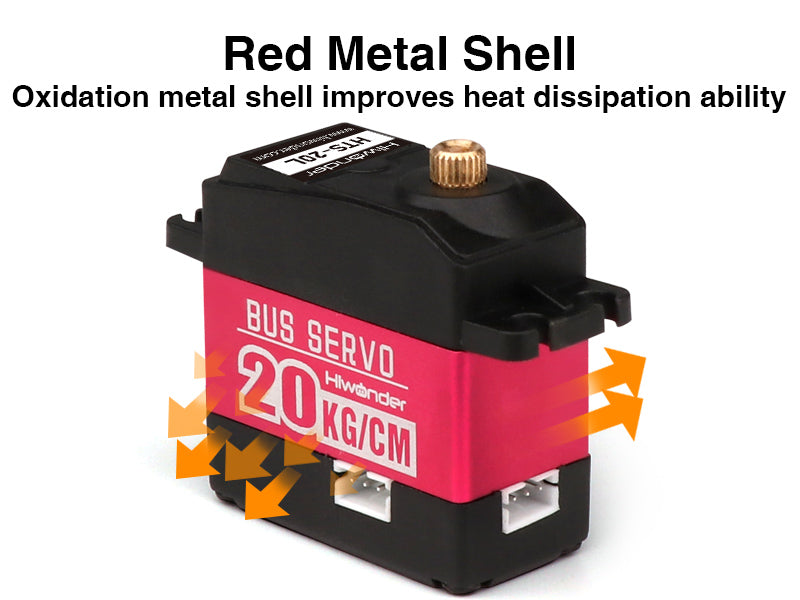

Red Metal Shell

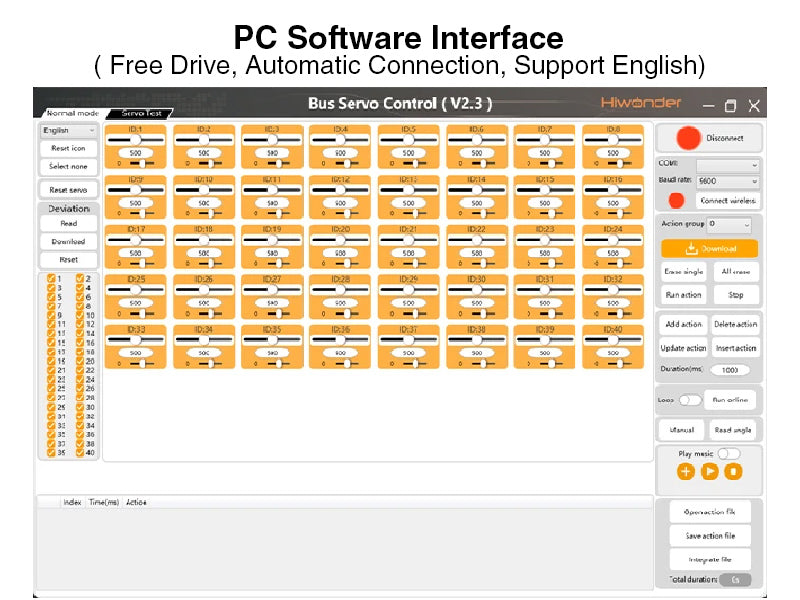

Servo Debugging System
In Debugging system, you can set ID number, working mode, rotation speed, position deviation, LED light, temperature alarm and voltage alarm for servos.

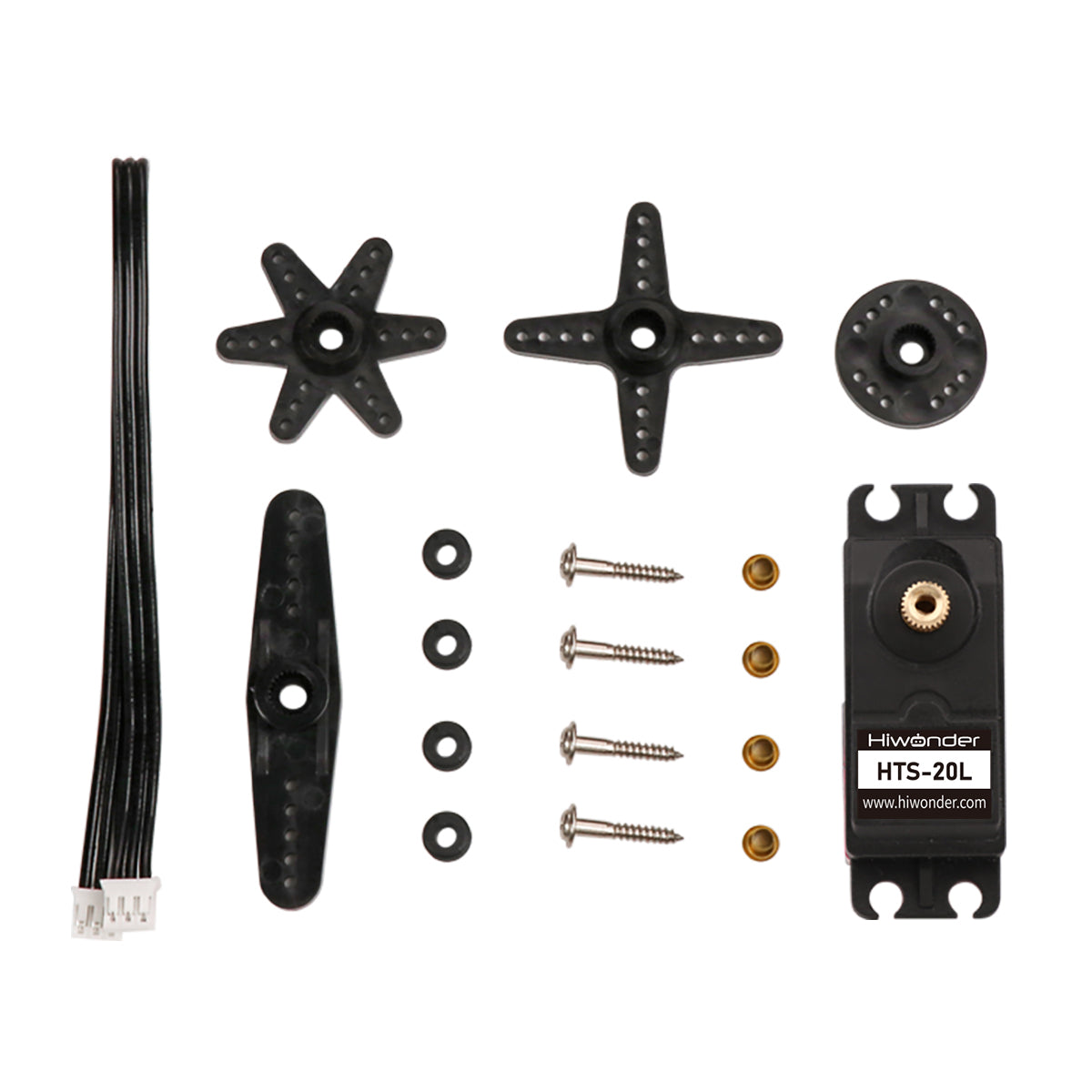

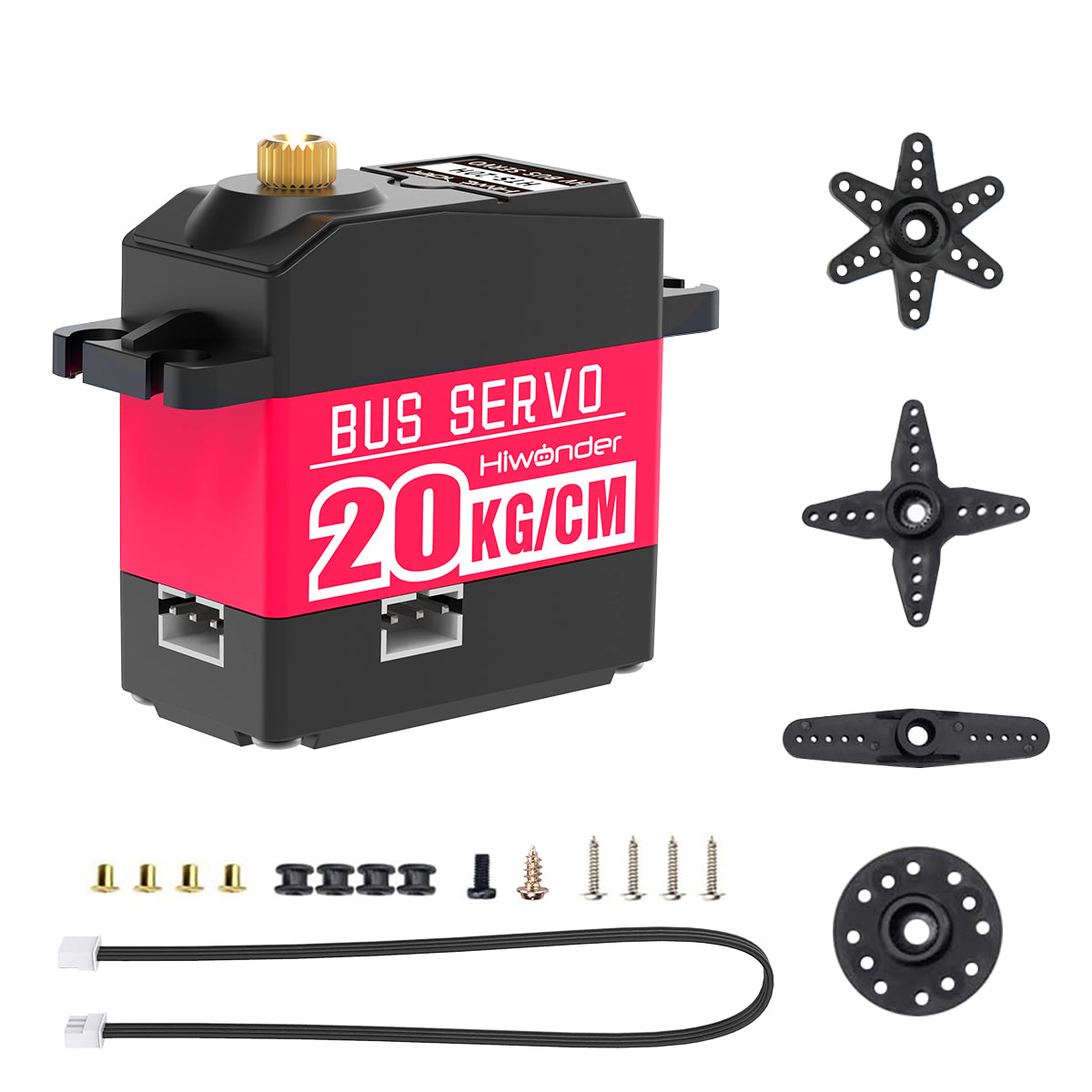

Packing List
| 1* HTS-20L serial bus servo | 4* Plastic servo horn |
| 1* Screw bag | 1* Servo wire |
Powerful Torque
All Metal Gear
Red Metal Shell
Servo Debugging System
In Debugging system, you can set ID number, working mode, rotation speed, position deviation, LED light, temperature alarm and voltage alarm for servos.
Packing List
1* HTS-20L serial bus servo
1* Screw bag
4* Plastic servo horn
1* Servo wire
1* Screw bag
4* Plastic servo horn
1* Servo wire

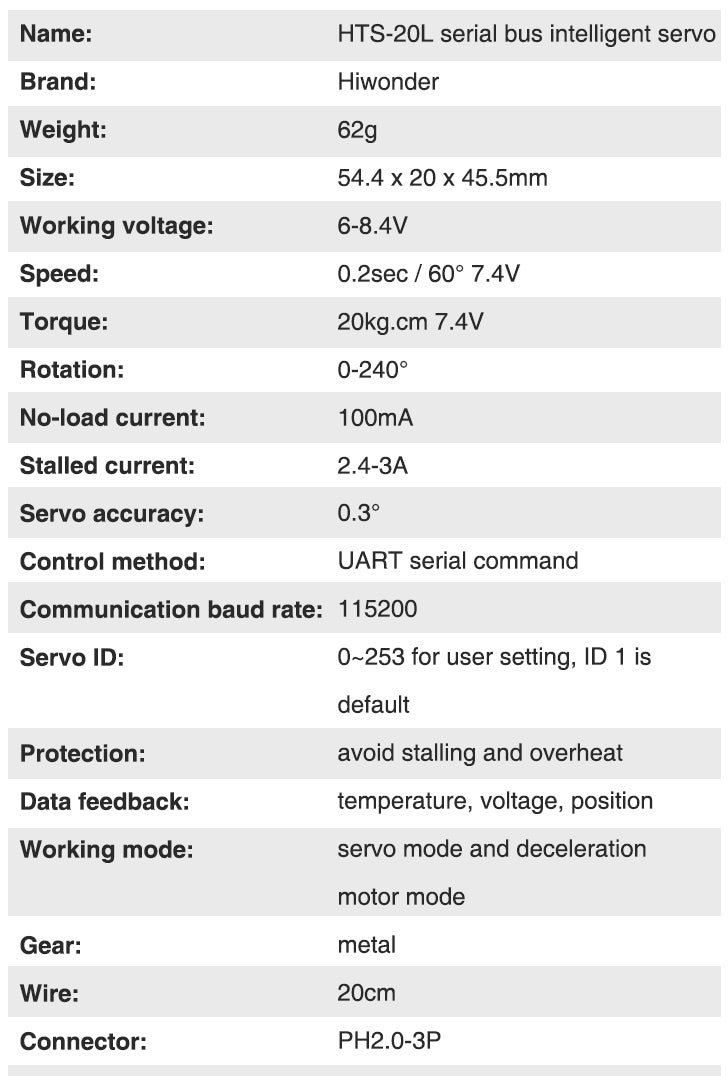

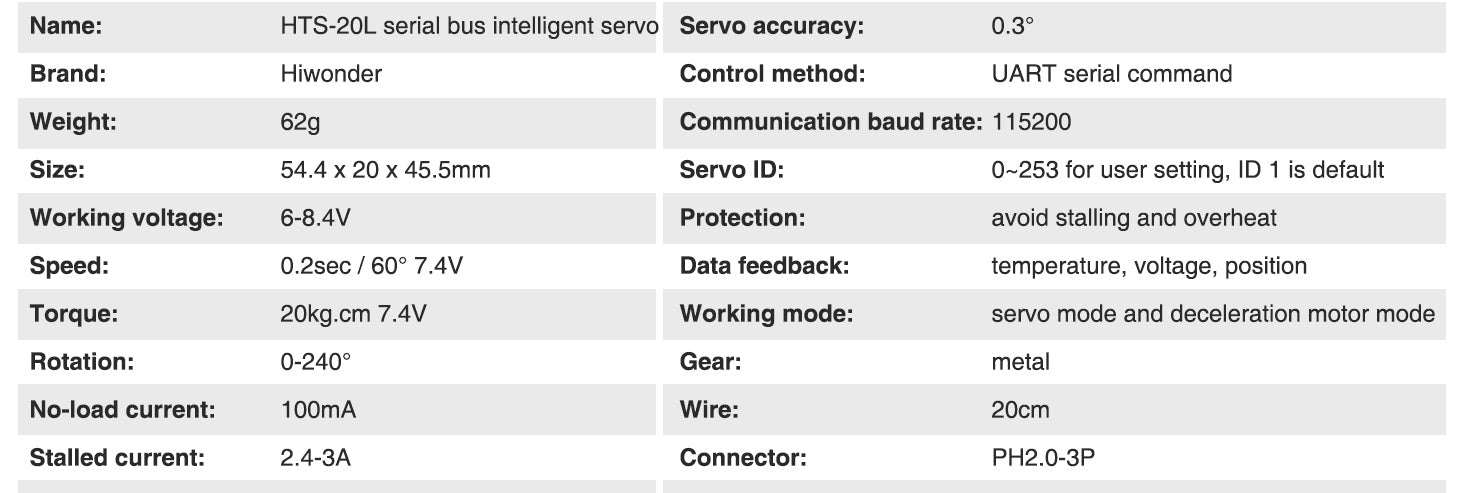

| Item | Specification |
| Weight | 62g (2.18OZ) |

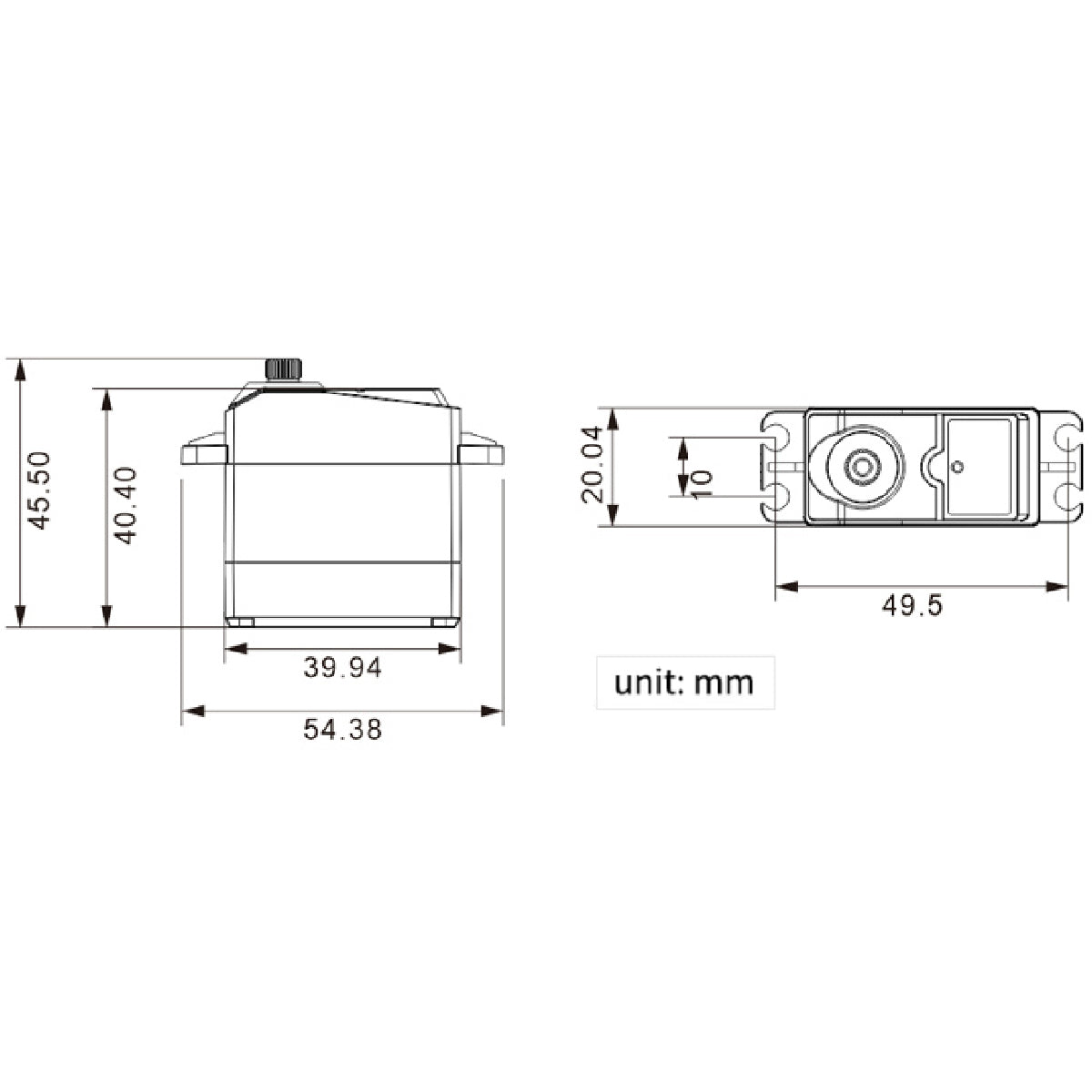

| Size | 54.38*20.04*45.5mm |
| Working voltage | 6-8.4V |
| Speed | 0.2sec/60°7.4V |
| Torque | 20kg.cm 7.4V |
| Rotation | 0°-240° |
| No-load current | 100mA |
| Stalled current | 2.4-3A |
| Servo accuracy | 0.3° |
| Control method | UART serial command |
| Communication baud rate | 115200 |
| Servo ID | 0-253 are available |
| Data feedback | temperature, voltage, position |
| Protection | avoid stalling and overheat |
| Working mode | servo mode and deceleration motor mode |
| Connector | PH2.0-3P |
| Package List | 1* HTS-20L servo 1* 20cm servo wire 4* plastic servo horn 1* screw bag |
