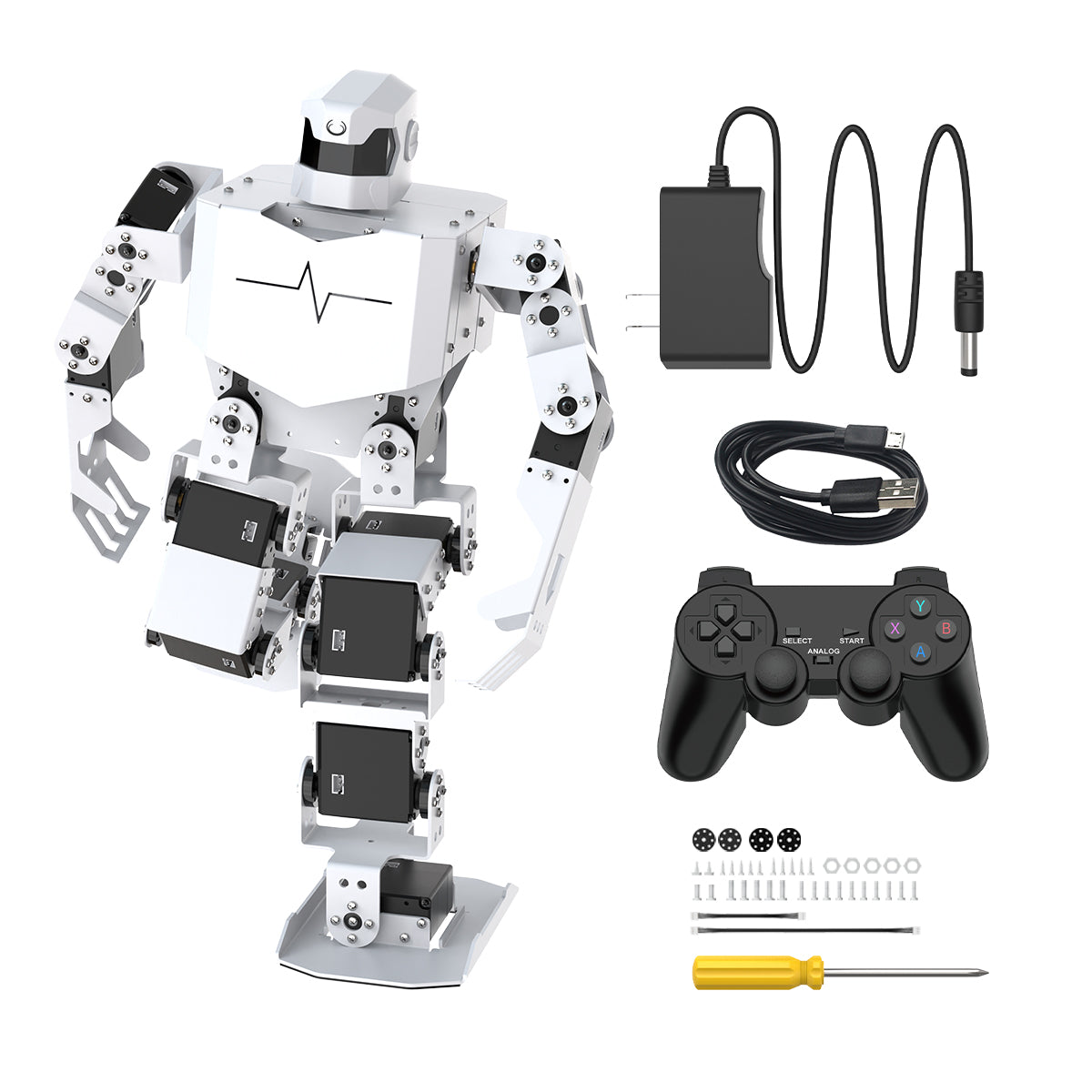

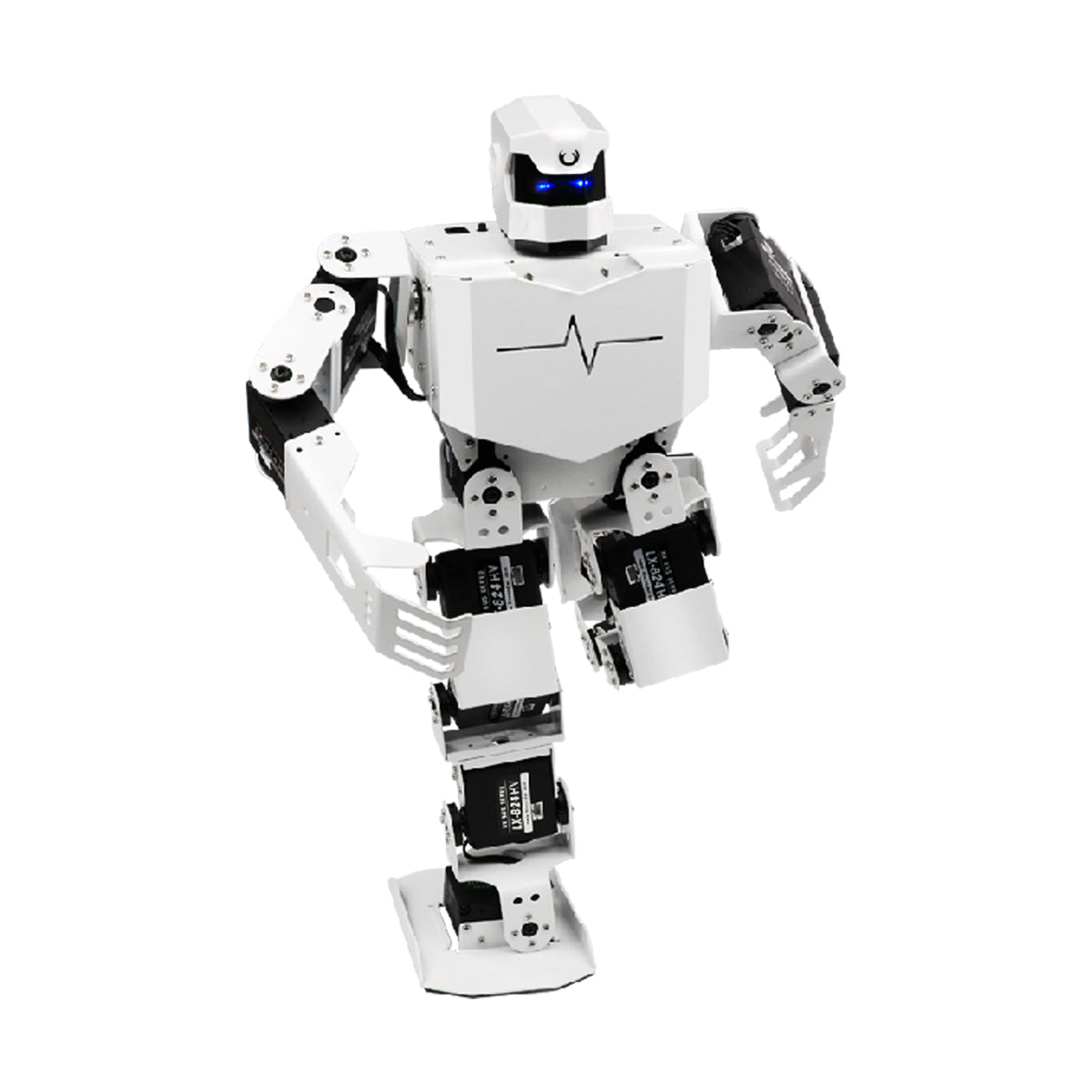

H5S Hiwonder 16DOF Intelligent Humanoid Dancing Robot Supports Entertainment Display

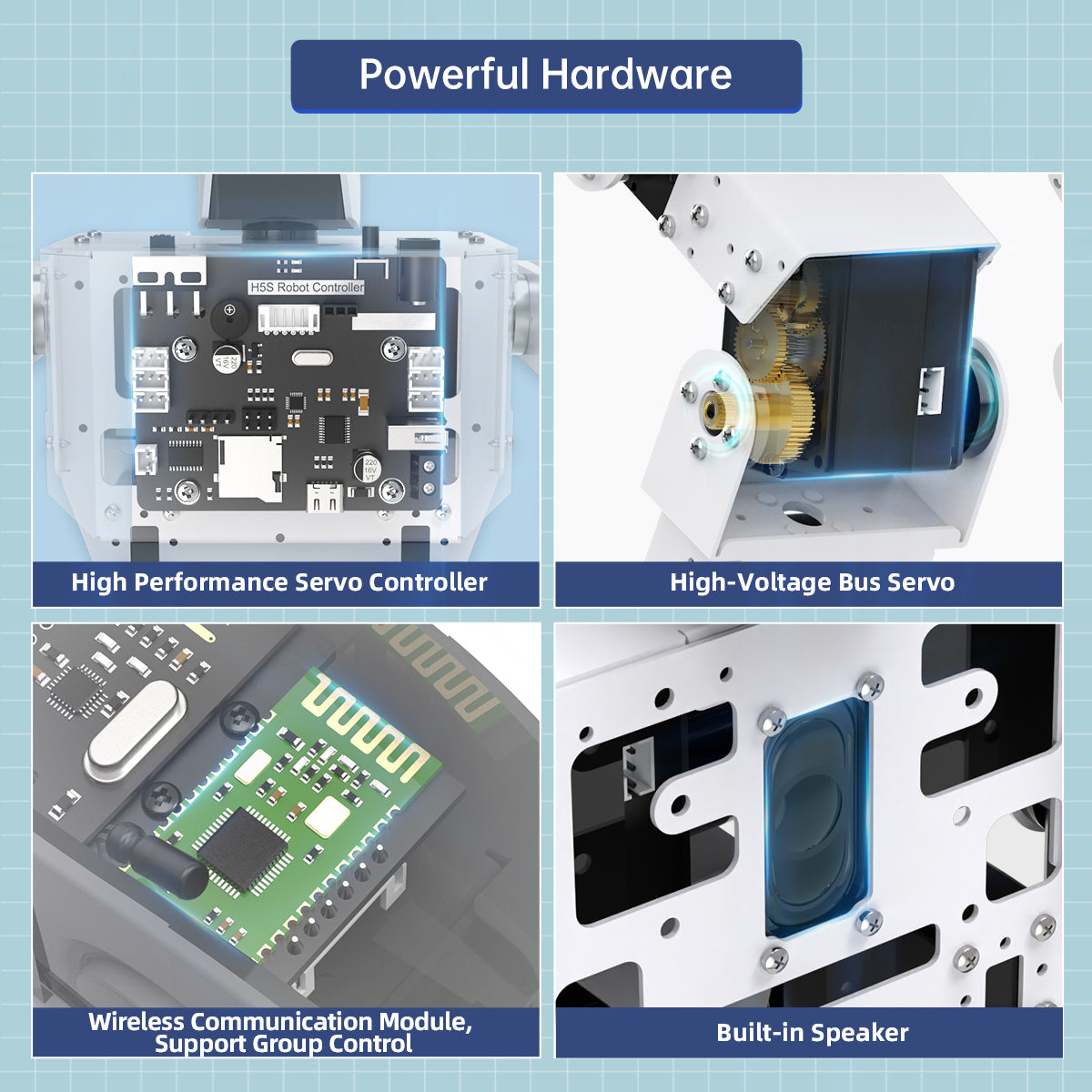

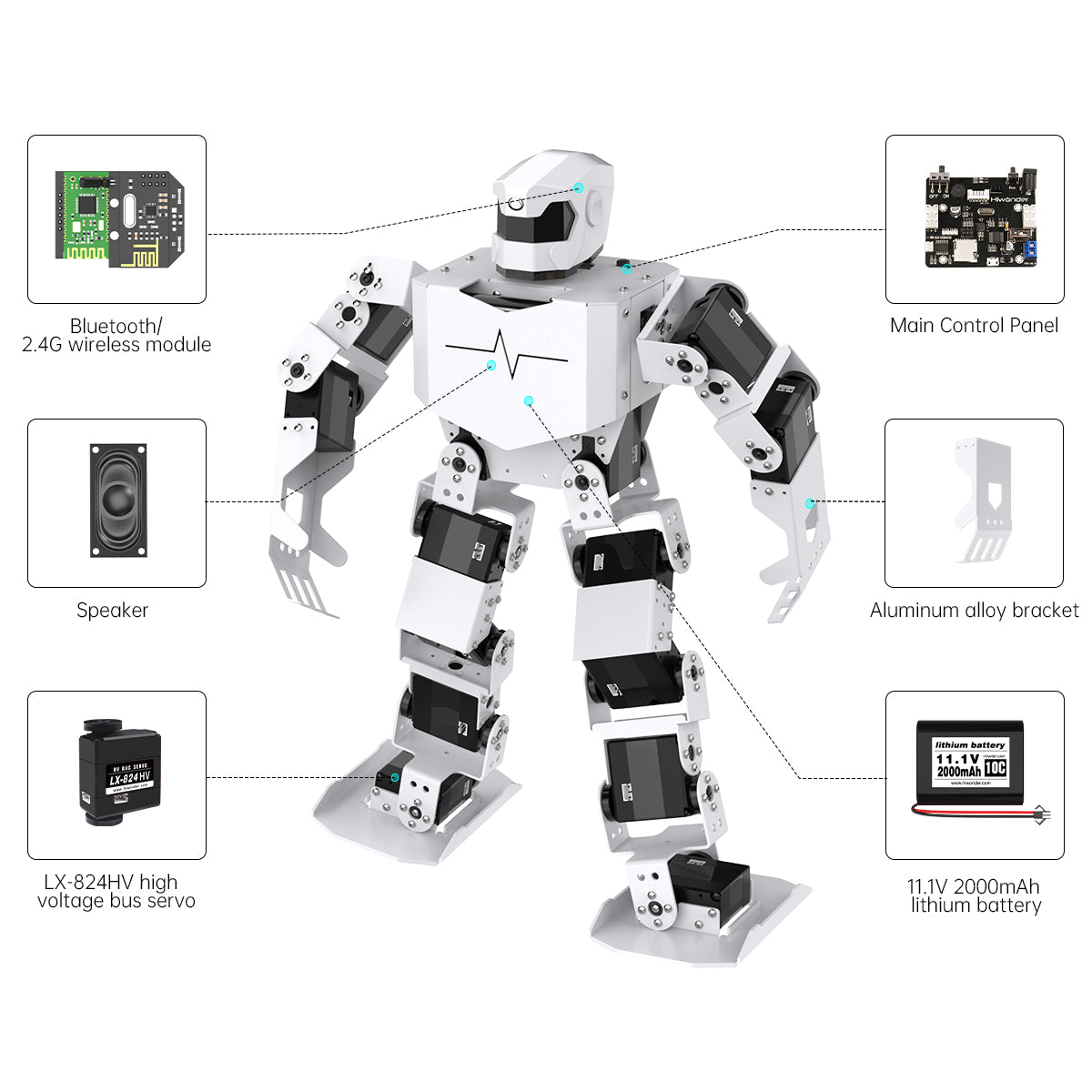

- 【Powerful Hardware】 Equipped with a high-performance servo controller, built-in MP3 module, IMU sensor, Bluetooth 4.0 and 2.4G wireless module, supporting group control.
- 【H5S Intelligent Humanoid Robot】H5S adopts high-speed gait algorithm, which can easily complete functions such as walking, dancing, kicking, boxing, etc., flexible and agile.

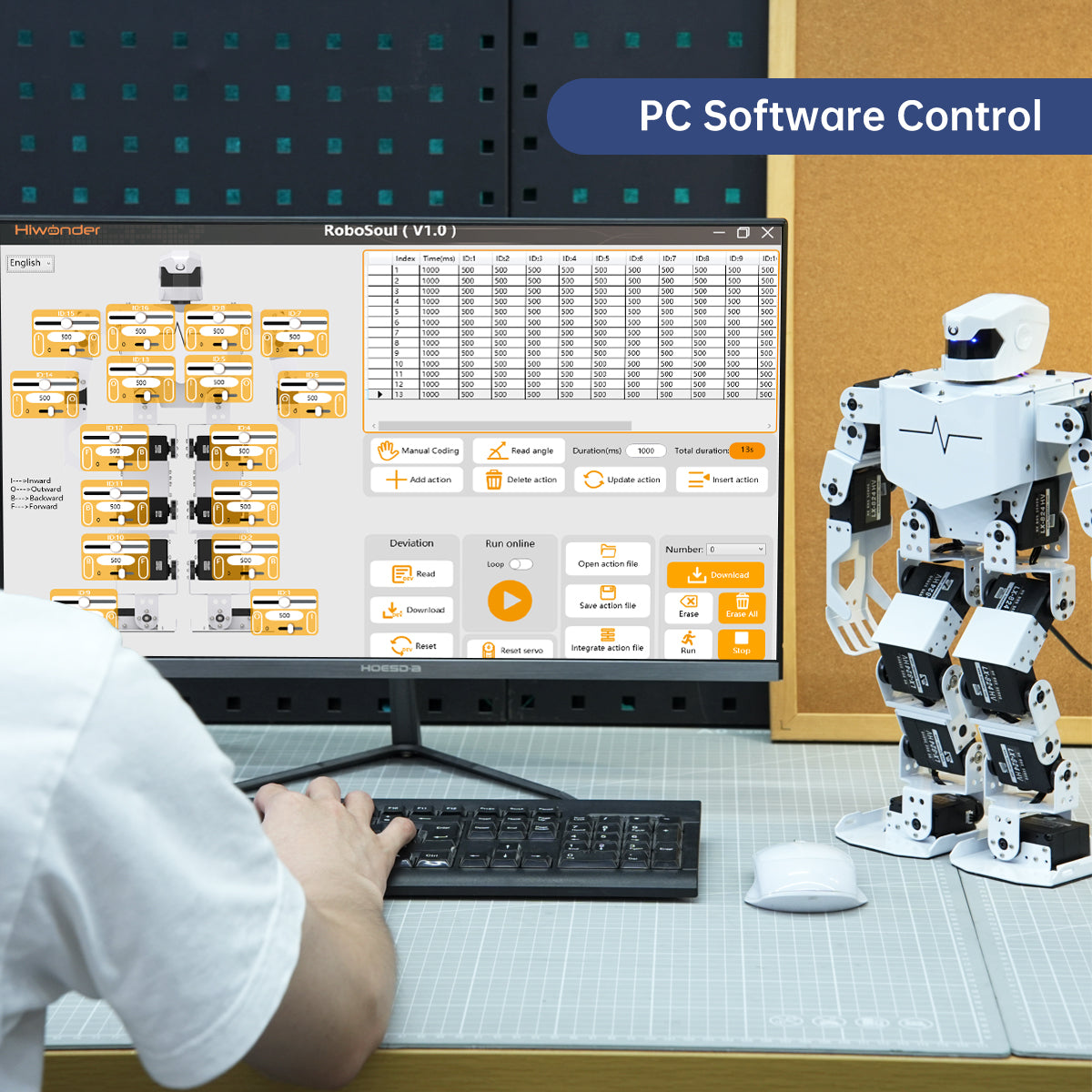

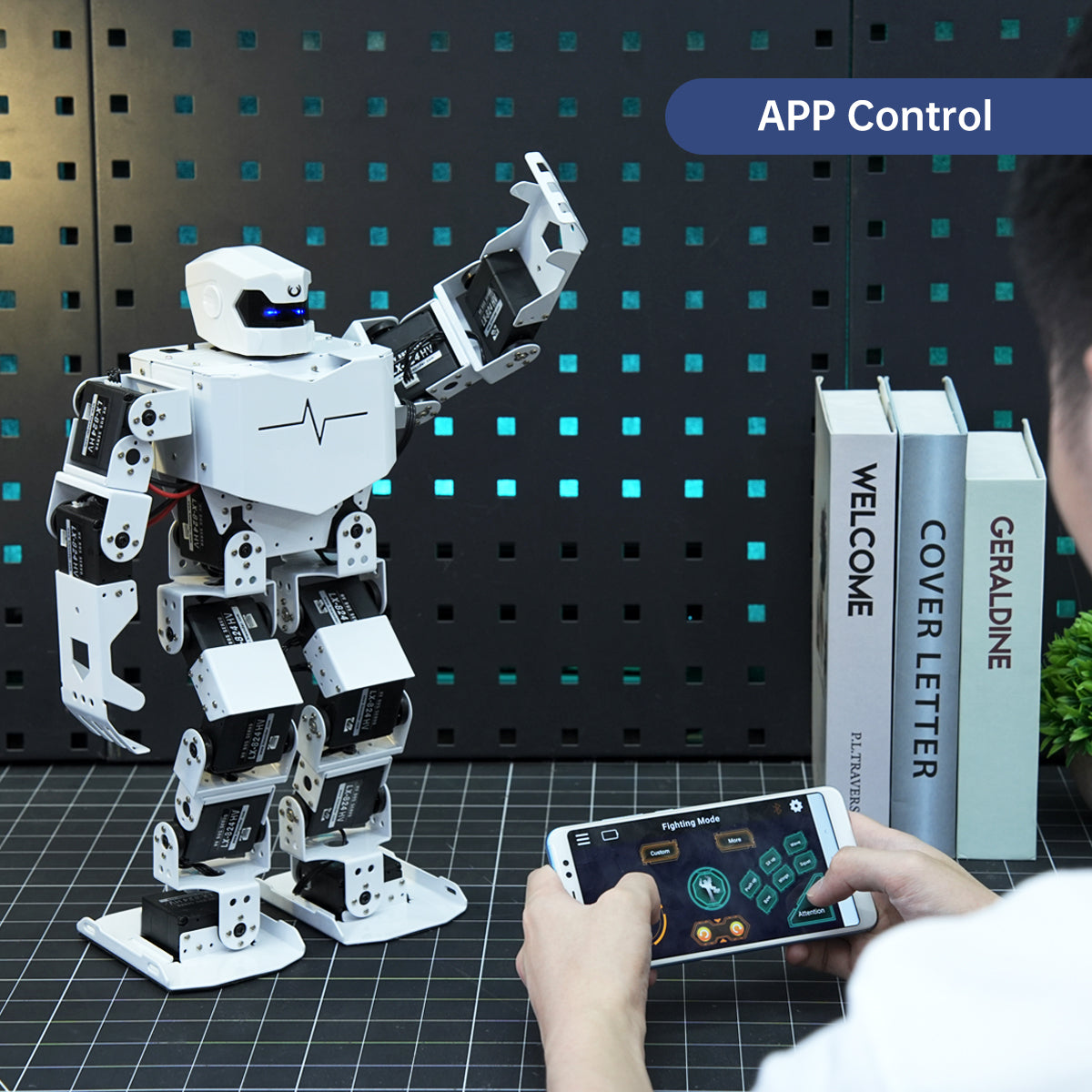

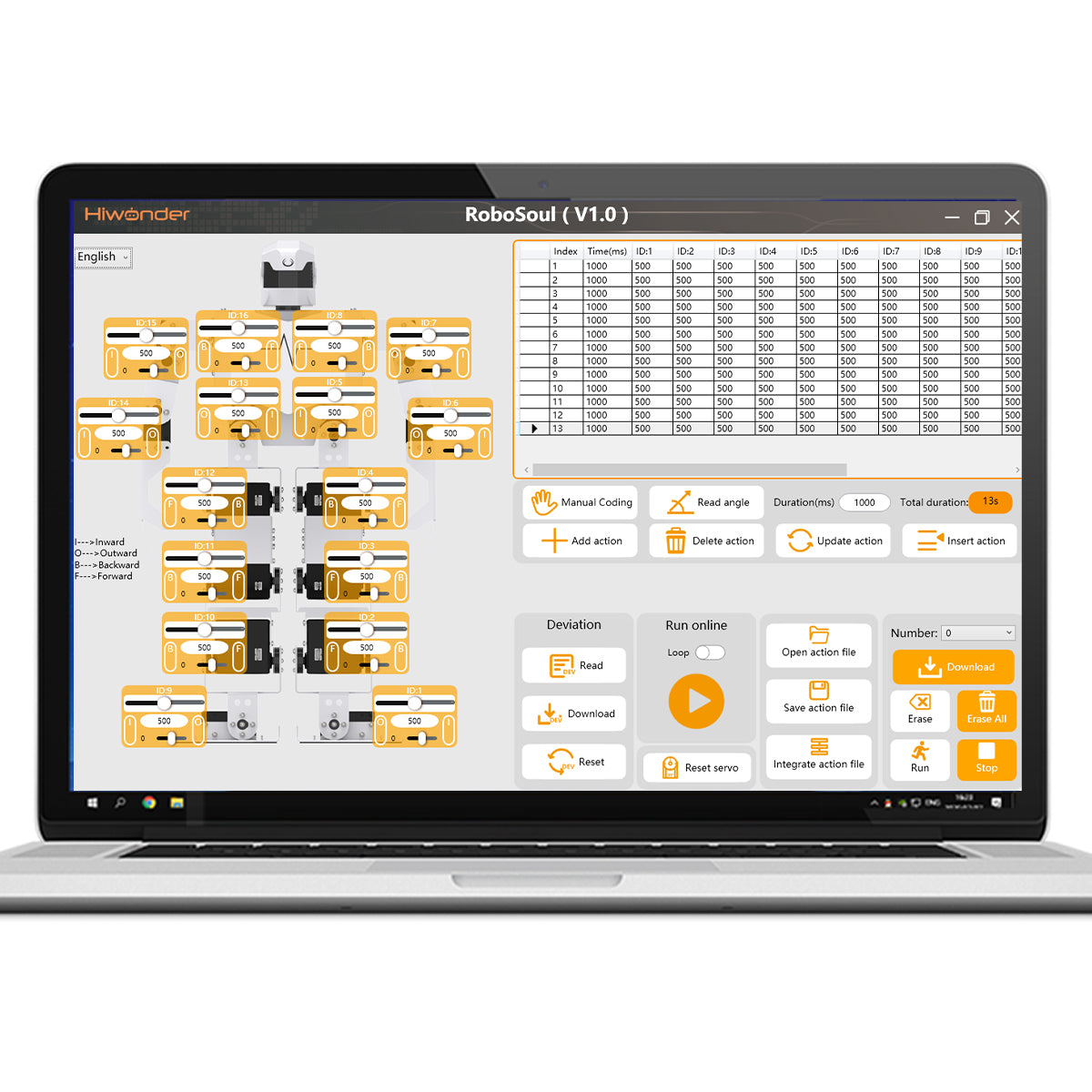

- 【Support Multiple Control Methods】 H5S not only supports PC graphical host software control, but also can set the robot's movements at will. It also supports APP independent control and APP group control, allowing you to enjoy a smooth control experience.
16DOF Structure Design
The H5S humanoid robot adopts a 16DOF structural design, making the robot more flexible. The H5S robot is equipped with intelligent high-voltage bus servos, which greatly improves the battery life.

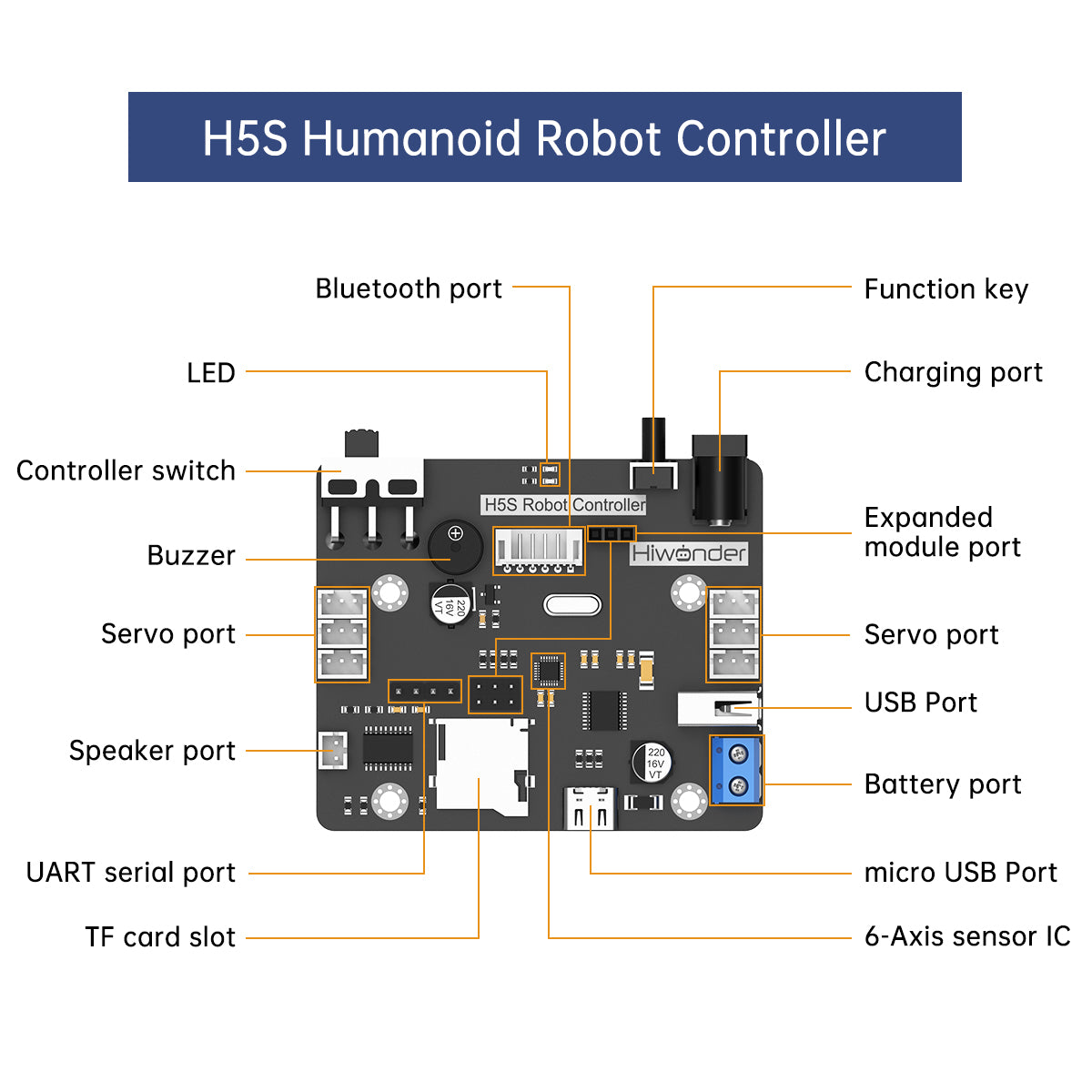

High Performance Servo Controller
The robot controller is equipped with a built-in 32-bit high-performance CPU with 16M Flash. It not only controls bus servo movements but also supports IMU attitude detection, TTL serial communication, MP3 playback, and low voltage alarms.
Wireless Communication Module, Support Group Control
The H5S humanoid robot can be connected to a Bluetooth module and a 2.4G wireless module. The robot can be controlled via a mobile phone APP and supports group control.
Built-in Speaker
The H5S humanoid robot is equipped with a speaker with a built-in 5W stereo sound, and the volume and sound effects are better than other ordinary speakers.

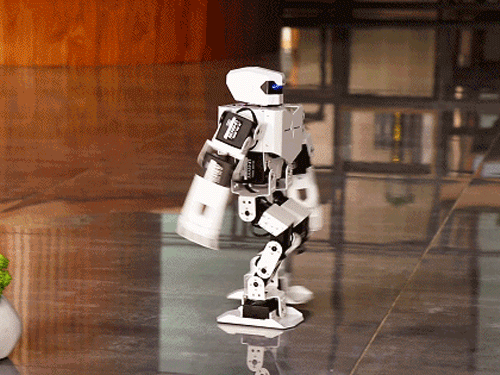

High Speed Gait
The H5S humanoid robot is based on bionics and combines the robot's high-speed gait algorithm to effectively improve the robot's walking speed and stability.
Singing and Dancing
The H5S robot is equipped with an MP3 module and a wireless communication module, enabling group control of multiple robots to sing and dance in unison.

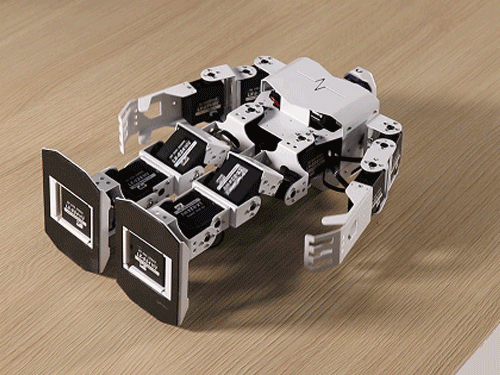

Stand Up Automatically
The H5S humanoid robot has a built-in tilt sensor that can automatically identify the direction of falling and complete intelligent fall and stand-up with one click.

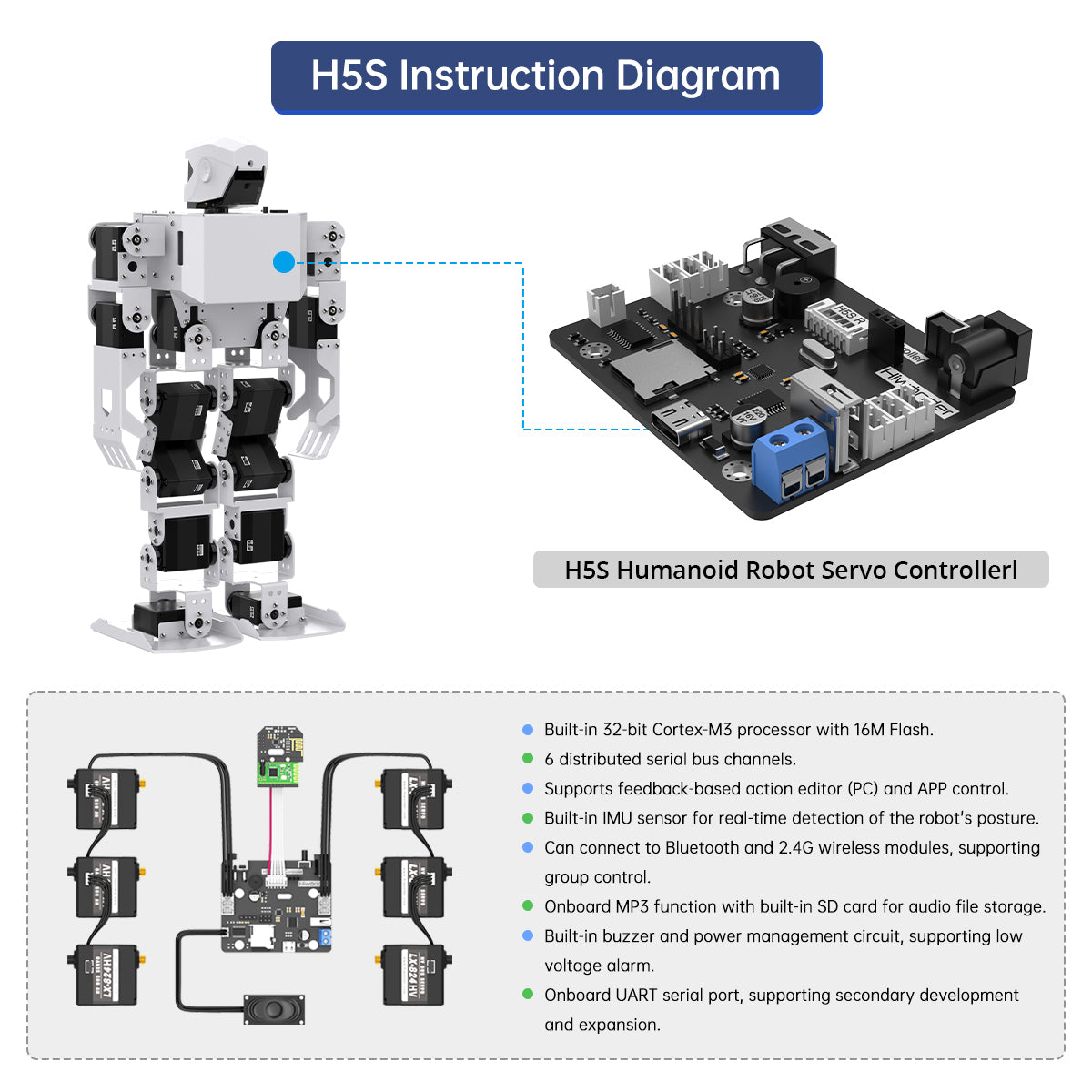

Feature：
-
Built-in 32-bit Cortex-M3 processor with 16M Flash.
-
6 distributed serial bus channels.
-
Supports feedback-based action editor (PC) and APP control.
-
Built-in IMU sensor for real-time detection of the robot's posture.
-
Can connect to Bluetooth and 2.4G wireless modules, supporting group control.
-
Onboard MP3 function with built-in SD card for audio file storage.
-
Built-in buzzer and power management circuit, supporting low voltage alarm.
-
Onboard UART serial port, supporting secondary development and expansion.

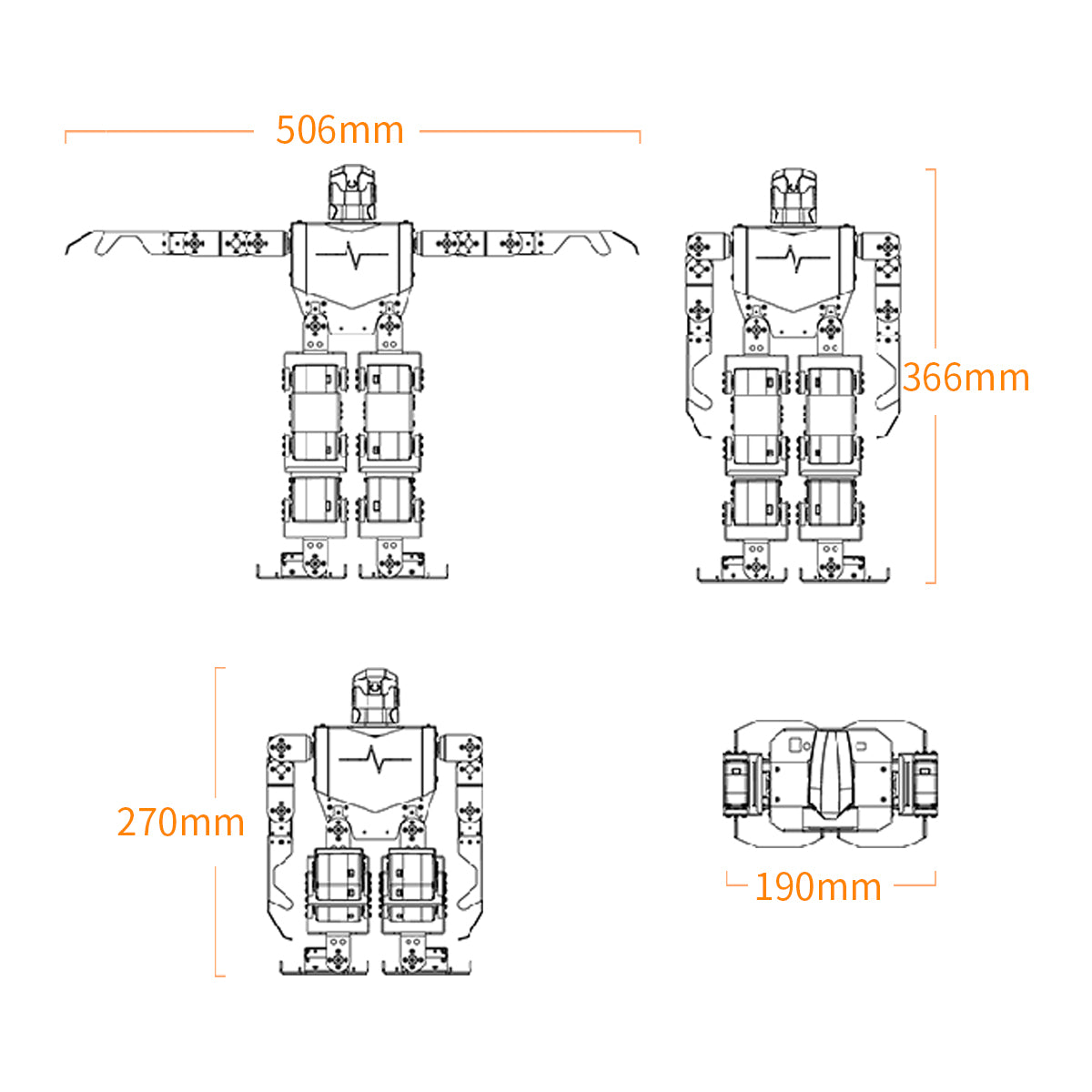

| Product Size | 366*190*115mm |
| Product Weight | About 1700g |
| Material | Aluminium alloy |
| Control chip | STM32F403 processor with 16M Flash |
| DOF | 16DOF |
| Software | Graphical PC software, Android and iOS APP (Wonderbot) |

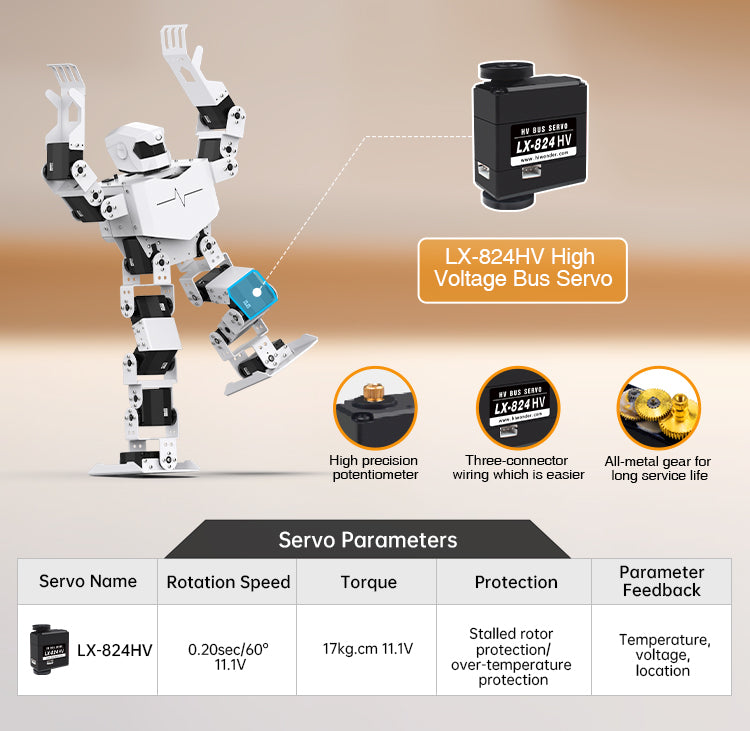

| Servo | LX-824HV high-voltage bus servo |
| Control method | PC / APP |
| Communication method | Bluetooth 4.0, 2.4GB wireless |
| Power | 11.1V 2000mAh 10C lithium battery |
| Item | Specification |
| Product Size | 366*190*115mm |
| Product Weight | About 1700g |
| Material | Aluminium alloy |
| Control chip | STM32F403 processor with 16M Flash |
| DOF | 16DOF |
| Software | Graphical PC software + Android and iOS APP (Wonderbot) |
| Servo | LX-824HV high-voltage bus servo |
| Control method | PC / APP |
| Communication method | Bluetooth 4.0, 2.4GB wireless |
| Power | 11.1V 2000mAh 10C lithium battery |
Questions & Answers
Have a Question?
-
What is the app for controller of robo
Hi there, this tutorial link for your reference: https://www.hiwonder.com.cn/store/learn/35.html
-
Does the software run on Mac computer?
Yes, the software can run on Mac
-
I want to connect it to a bluetooth speaker... How?
Our Bluetooth is BLE, which does not support audio channels, and the audio is from an MP3 module. You can download songs into t he SD card directly.
-
My Bluetooth won't connect
Pls send your issue with video to support@hiwonder.com
-
I lost the phone that had the H5S SOFTWARE and i would like to get the software for my new phone but I can't find it online please help
Please check this link: https://www.hiwonder.com.cn/store/learn/35.html
