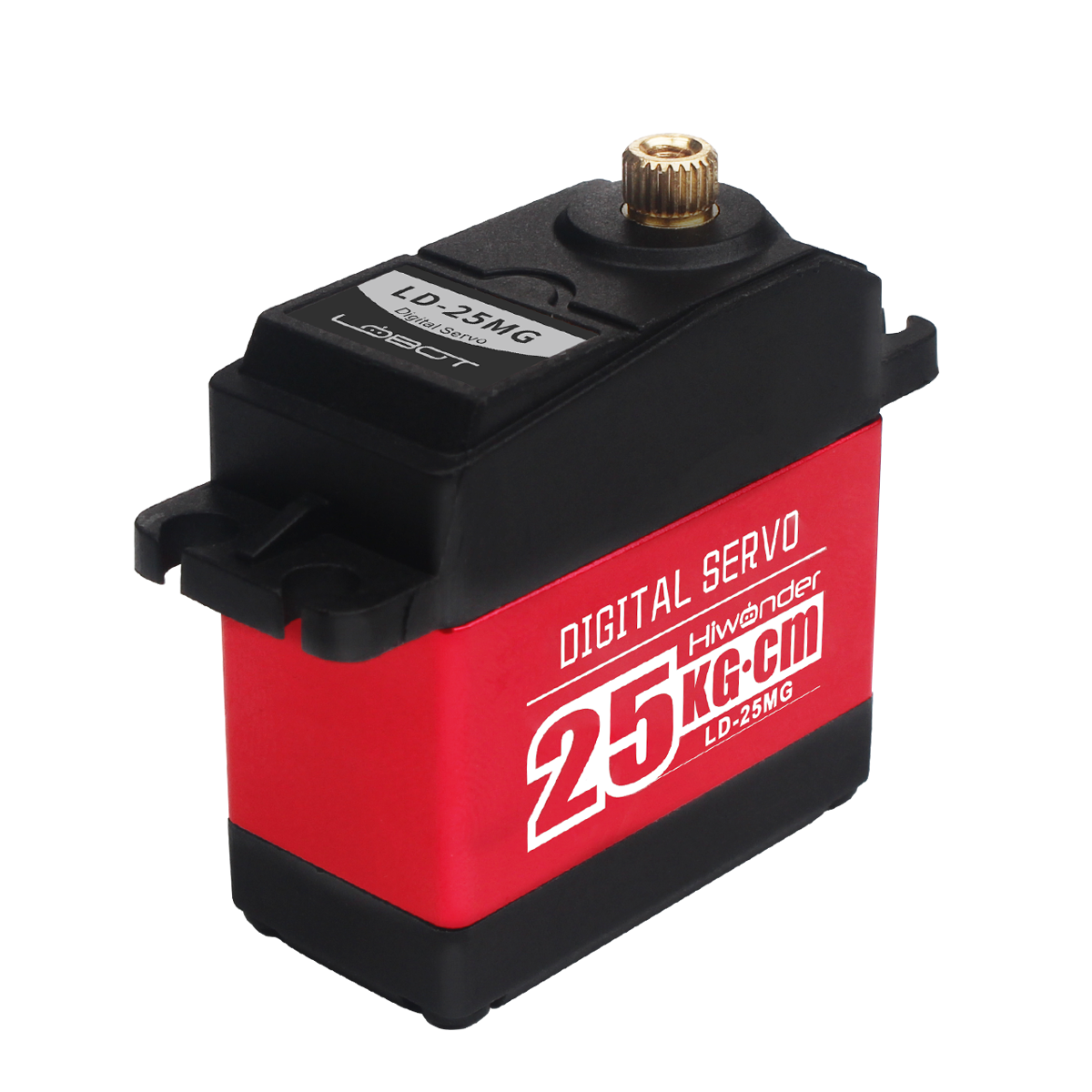

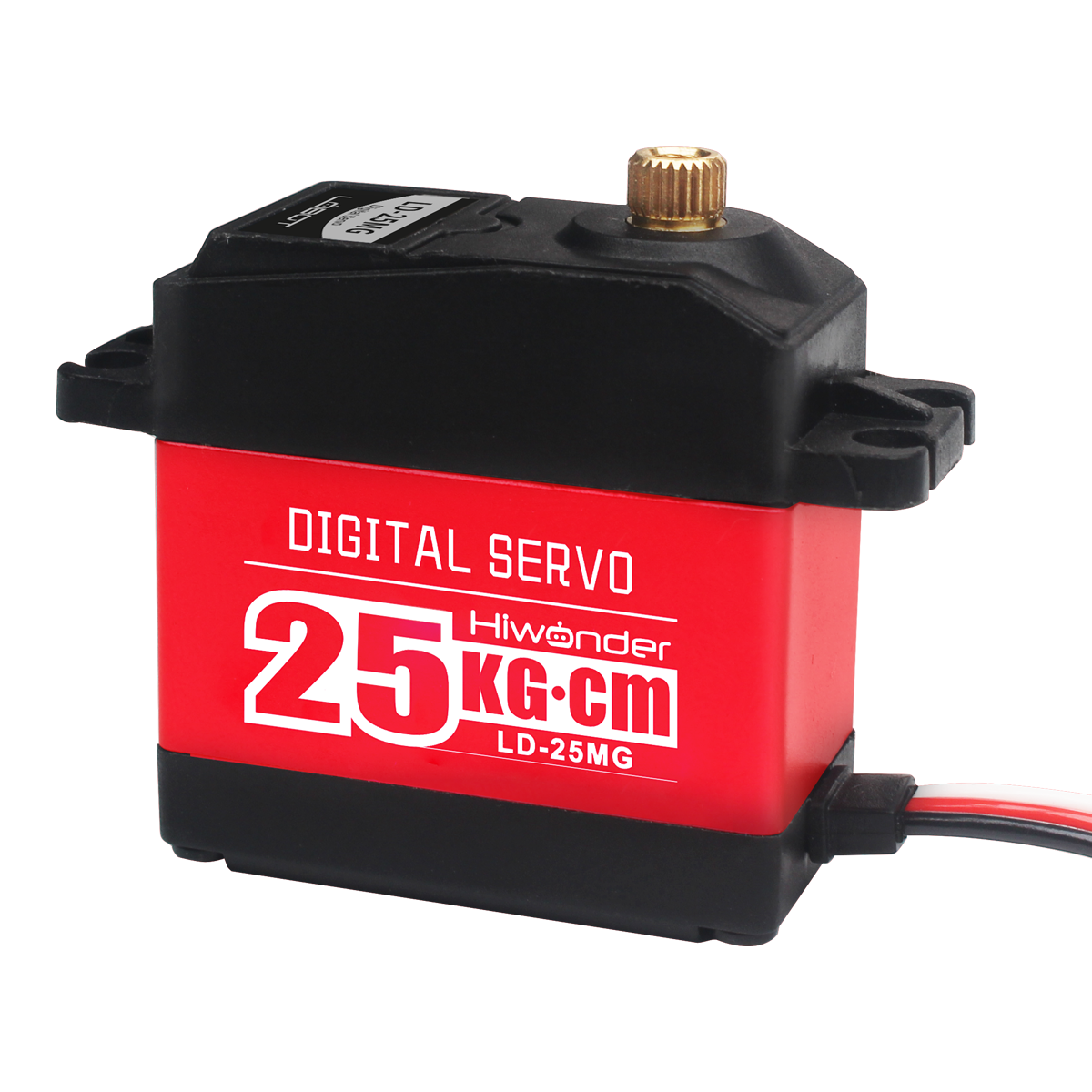

Hiwonder LD-25MG Strong Torque Digital Servo 25KG Supports Robotic Arm/RC Car/Single Shaft
- Single sharft PWM servo
- 25kg Strong Torque 25kg.cm 7.4v
- Metal shell for strong heat dissipation
- Metal gear for long service life
| Product weight | 66g |
| Product size | 40*20*40.5mm |
| Rotation speed | 0.20sec/60°(7.4V) |
| Stall torque | 25 kg·cm @7.4V |
| Working Voltage | 6-8.4V |
| Stall current | 2.4~3A |
| No-load Current | 100mA |
| Servo Horn | 25T |
| Servo Wire | 30cm in length |
| Control Method | PWM pulse width control |
| PWM pulse width range | 500~2500us, corresponding to 0~180° |
| Duty Ratio | 0.5ms~2.5ms |
| Pulse Period | 20ms |
| Wire Layout | red wire: +; black wire: GND; white wire: PWM/signal |
| Rotation range | 0~180° |
| Servo accuracy | 0.3° |
High-Quality Metal Motor
The servo features high-quality metal motors, allowing it to support higher payloads and withstand impacts. This design significantly enhances the servo's torque and extends its lifespan.
All Metal Gear
This product showcases exceptional performance, minimal noise output, and the inclusion of metal gear and dual-ball bearings. By integrating a high-precision potentiometer, its accuracy and linearity are greatly enhanced leading to an extended service life.
High Quality Potentiometer
The servo adopts a high-precision potentiometer, which improves the accuracy and linearity, makes the operation more stable and prolongs the service life.
Red Oxidized Metal Shell
The servo is encased in a red oxidized metal shell, providing excellent heat dissipation while also offering a sleek, modern appearance.
180° Precision Control
Equipped with a high-accuracy potentiometer, this servo offers precise control over its output angle from 0° to 180°. PWM pulse width modulation allows for fine-tuned adjustments, ensuring accurate positioning.
25kg Large Torque
This servo boasts an impressive maximum torque of 25KG.CM 7.4V, enhanced by its accompanying metal servo arm. Delivering robust power, it is housed within an aluminum alloy casing that facilitates excellent heat dissipation, thereby effectively reducing power consumption.
| Item | Specification |
| Product weight | 66g |
| Product size | 40*20*40.5mm |
| Rotation speed | 0.20sec/ 60°(7.4V) |
| Stall torque | 25 kg·cm @7.4V |
| Working Voltage | 6-8.4V |
| Stall current | 2.4~3A |
| No-load Current | 100mA |
| Servo Horn | 25T |
| Servo Wire | 30cm in length |
| Control Method | PWM pulse width control |
| PWM pulse width range | 500~2500us, corresponding to 0~180° |
| Duty Ratio | 0.5ms~2.5ms |
| Pulse Period | 20ms |
| Wire Layout | red wire: +; black wire: GND; white wire: PWM/signal |
| Rotation range | 0~180° |
| Servo accuracy | 0.3° |
Questions & Answers
Have a Question?
-
I hope this email finds you well. I am writing to inquire about the following details regarding your servo product: Country of Origin Could you please confirm where the servo is manufactured? Voltage Level Could you provide the detailed voltage specifications and acceptable operating range for this servo model? Servo Rate I would also like to know the servo rate (e.g., signal frequency, update rate) supported by this model. Thank you very much for your assistance. I look forward to your prompt reply.
Hi there, this servo is developed and produced by our company. The Country of Origin is China. This tutorial link for your reference: https://drive.google.com/drive/folders/1fqyJPkzmD5lB_gBdXiG3o6o3l0OPSTpO?usp=sharing
