PWM Servo

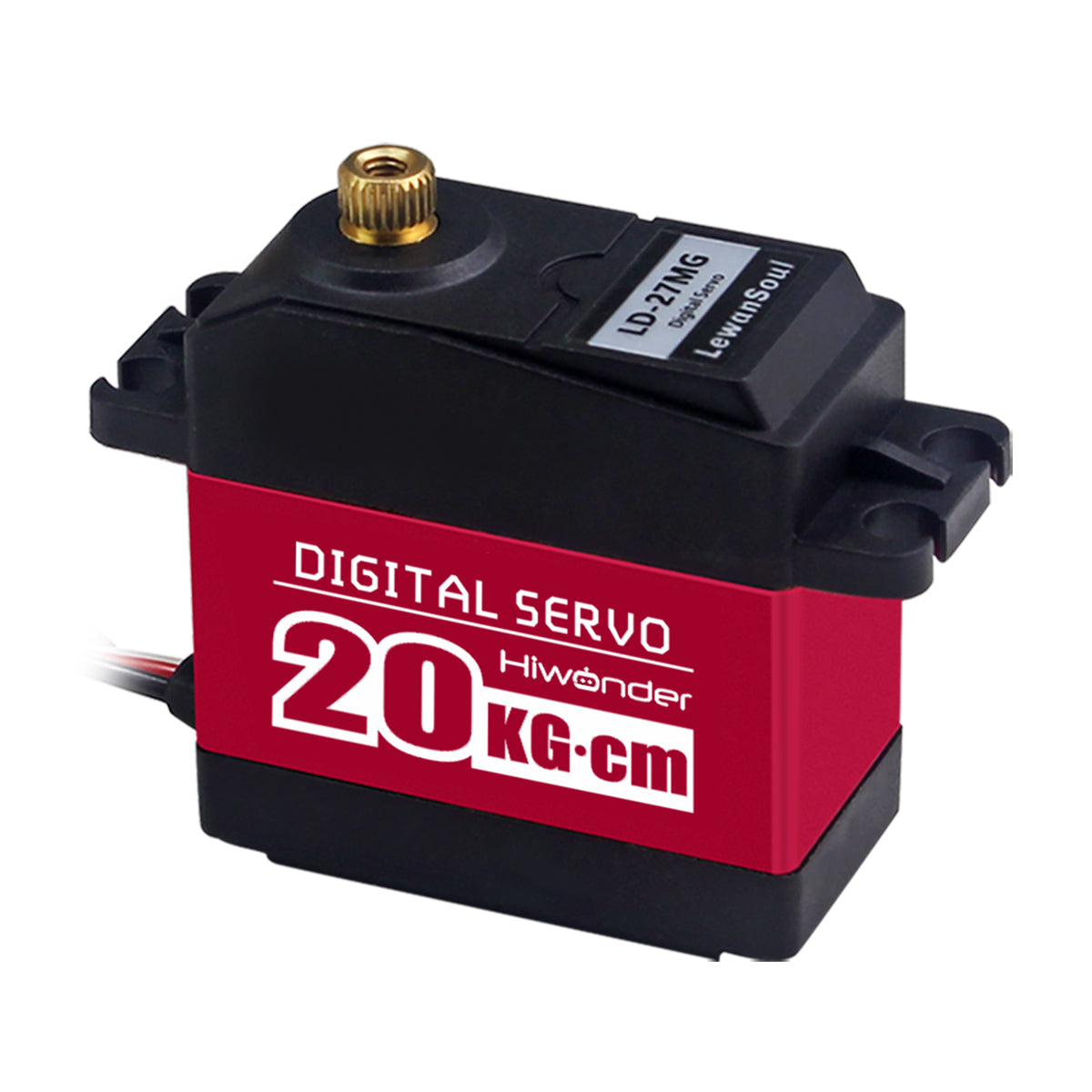

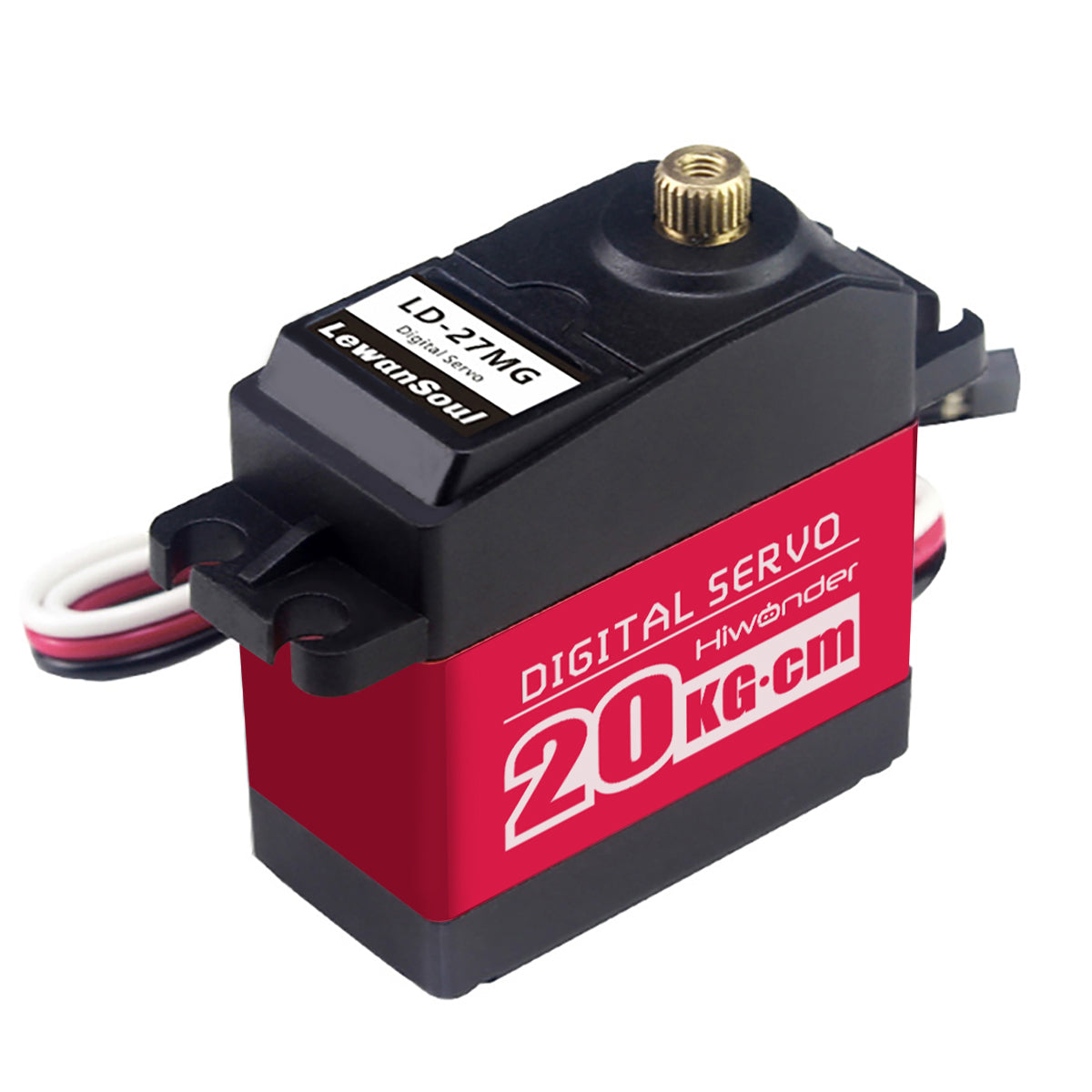

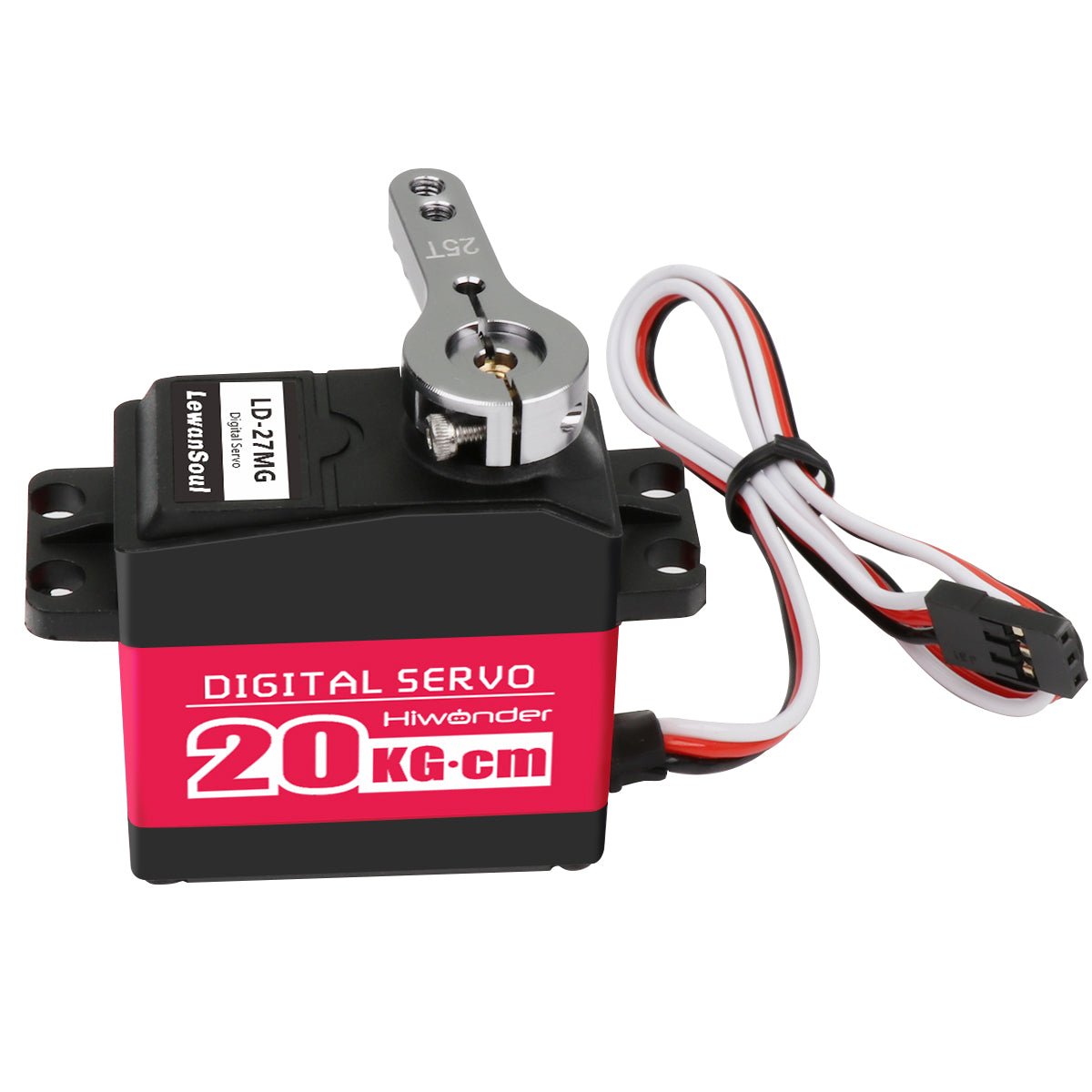

Hiwonder LD-27MG Full Metal Gear Digital Servo with 270 Control Angle, Aluminium Case for Robot RC Car
Product SKU: HW2019042
- 20KG large torque. 20 kg·cm (277.6 oz·in) @ 7.4V
- Full metal gear
- Aluminium case
- Use high-precision potentiometer with new design
- 270 degree rotation.
Available:
Only 956 items in stock
In stock
In stock
Out of stock
Back in stock
$21.99
Product Description
Hiwonder LD-27MG is a full metal gear standard digital servo with 20kg large torque, using aluminum case for Robotic RC Car with control angle 270 degrees.
Feature
- 20kg large torque.
- Full metal gear. Improve servo’s accuracy and extend its service time
- Aluminum Case enhances heat dissipation and ensures servo motor work properly
- Use high-precision potentiometer with a new design. Accuracy and linearity have been greatly improved! Accurate movement can help you build up robots
- 270 degrees rotation. Controllable angle range from 0 to 270 degrees, excellent linearity, precision control. It can rotate within 360 degrees when power off
Powerful Torque
All Metal Gear
270° Rotation
Red Metal Shell
Product Details

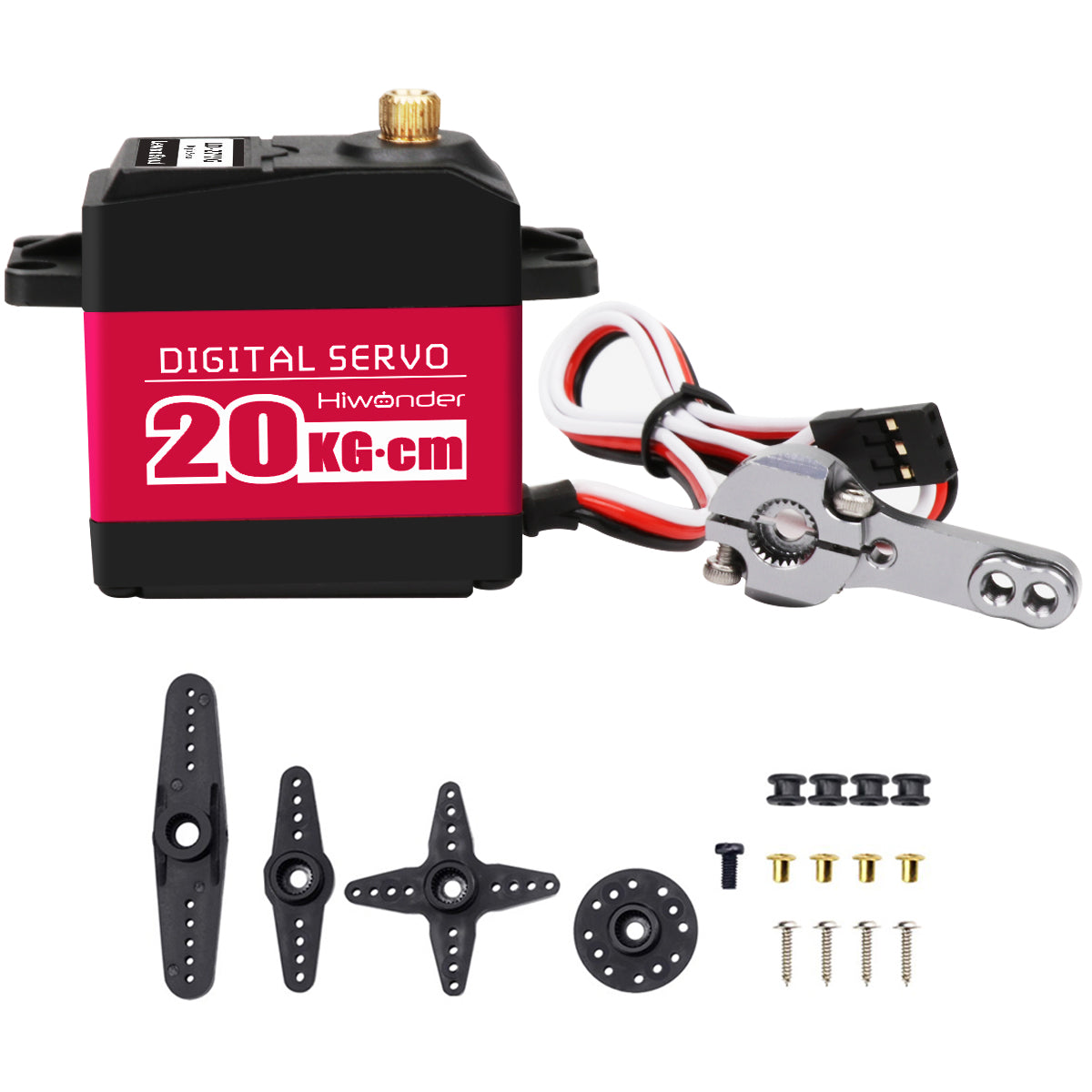

Packing List
| 1* LD-27MG single-shaft digital servo | 1* screw horn kit |
Powerful Torque
All Metal Gear
270° Rotation
Red Metal Shell
Product Details
Packing List
1* LD-27MG single-shaft digital servo
1* screw horn kit
1* screw horn kit
| Item | Specification |
| Weight | 65g(2.32OZ) |

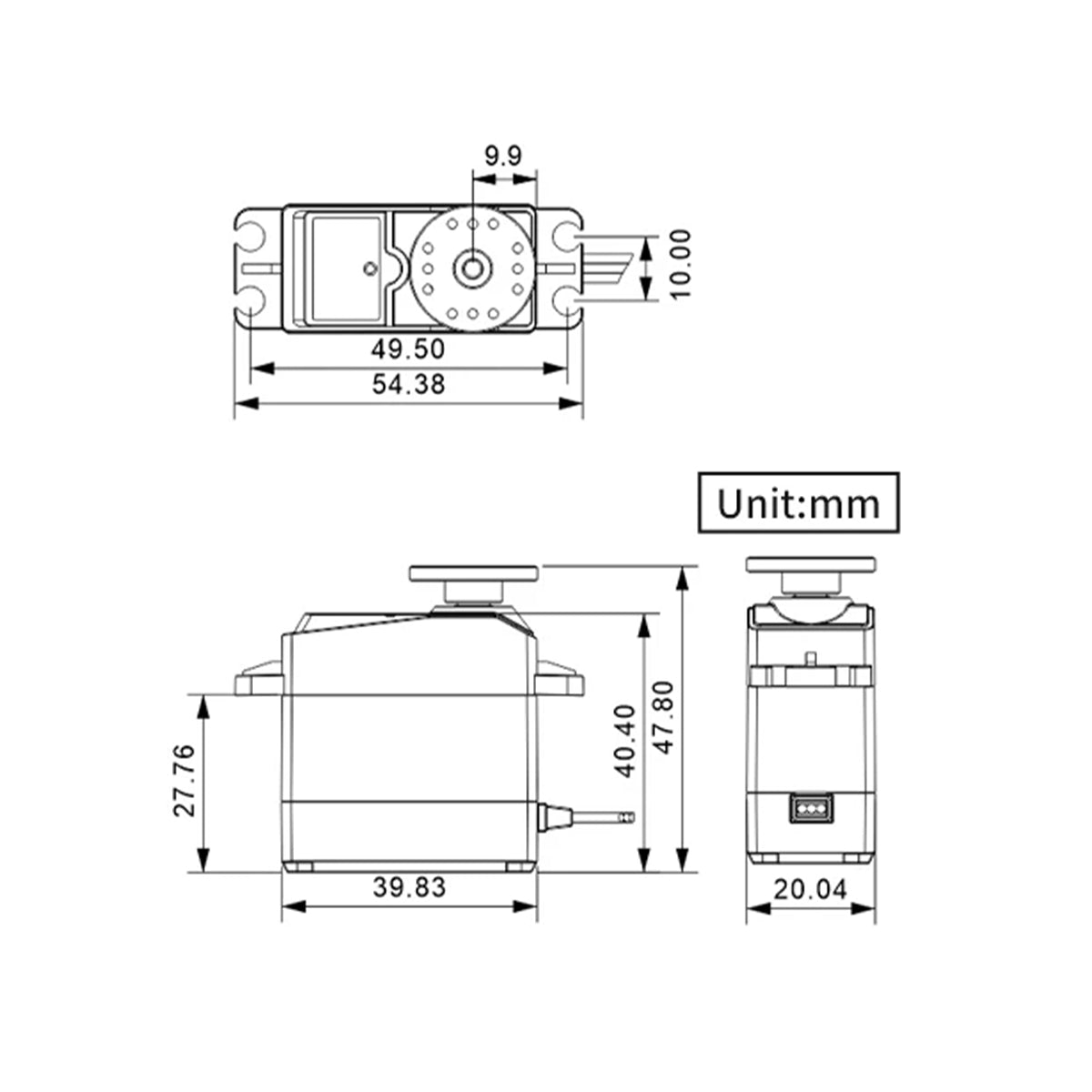

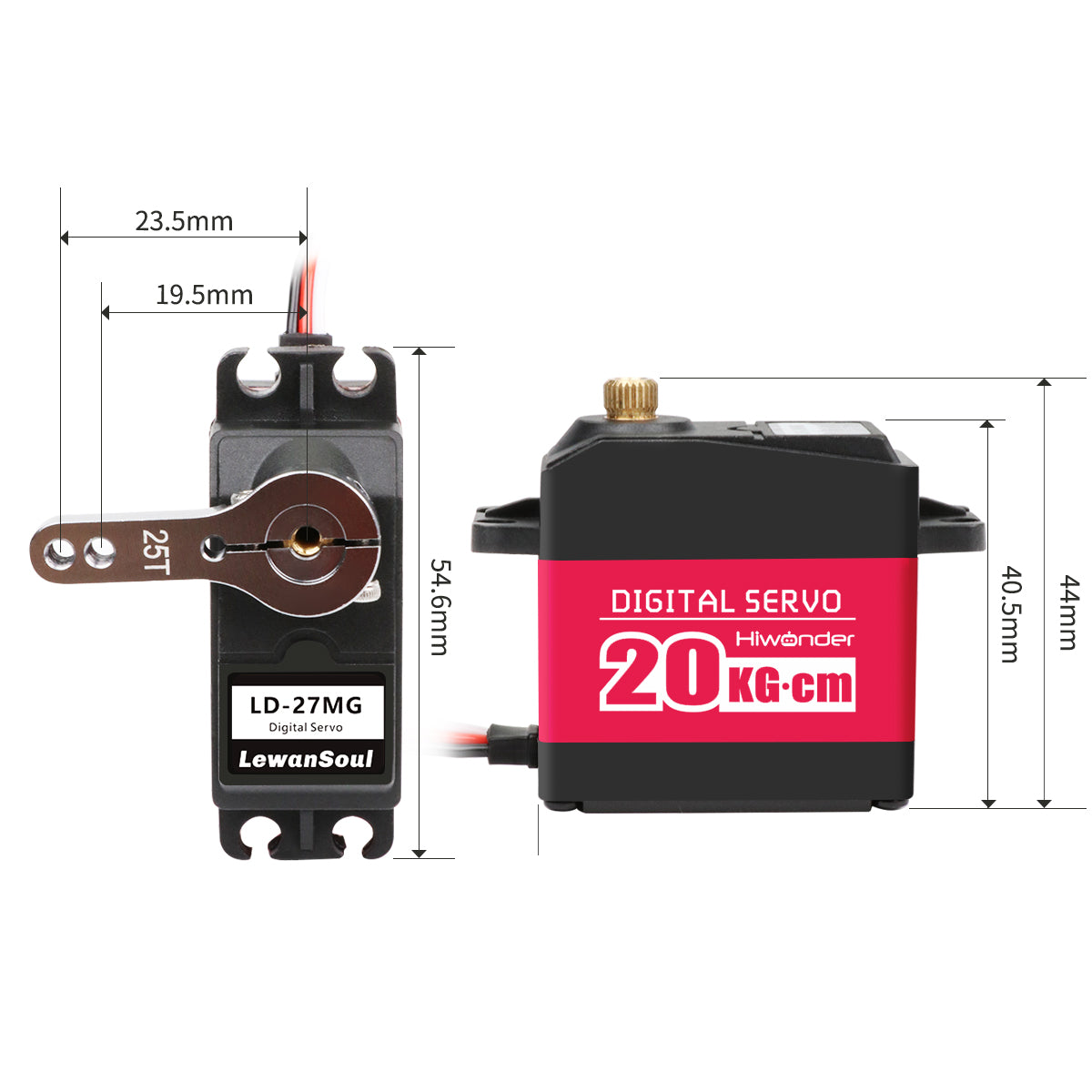

| Dimension | 54.5mm*20mm*47.5mm (2.14inch*0.78inch*1.87inch) |
| Speed | 0.16sec/60°(7.4V) |
| Torque | 20 kg·cm (277.6 oz·in) @7.4V |
| Working Voltage | 6-7.4V |
| Min Working Current | 1A |
| No-Load Current | 100mA |
| Spline | 25T(6mm in diameter) |
| Servo Wire | 30cm(11.8inch) in length |
| Control Method | PWM |
| Pulse Width | 500~2500us, to (0~270deg) |
| Duty Ratio | 0.5ms~2.5ms |
| Pulse Period | 20ms |
| Wire Layout | red wire: + black wire: GND white wire: PWM/signal |
| Package List | 1* digital servo 1* screw horn kit |
Please make sure that the duty cycle of the controller you used is confirmed to our specifications, otherwise the servo can't turn up to a claimed degree.
Important Tips
-
Recommend to use lithium polymer battery with high rate discharge(min 5C), please don't use the dry battery.
-
Please use a short and thick power cord, don't use Dupont cord.
