% $-2.99
- Working voltage: DC 5V
- Working current: 5mA
- Size: 50mm x 20mm
- 4 Pin wire port. Connecting wire is provided. Easy to connect
- The holes are compatible with LEGO bricks
Available:
Only 966 items in stock
In stock
In stock
Out of stock
Back in stock
$2.99
Product Description
Based on capacitive sensing, Hiwonder touch sensor can sense the touch from human body or metal. After powering, signal terminals OUT will output high-level signal when sensor does not sense the touch signal. When the touch signal is sensed, signal terminal OUT will output low-level signal.
It is applicable in switch control, such as light switch and doorbell touch buttons. The holes on the module are compatible with Lego for more creative DIY designs.
It is applicable in switch control, such as light switch and doorbell touch buttons. The holes on the module are compatible with Lego for more creative DIY designs.
Features
- Working voltage: DC 5V
- Working current: 5mA
- Port type: 5264-4AW
- Size: 50mm x 20mm
- PWR: Lighting up after powering
- LED1: Lighting up when the touch signal is sensed

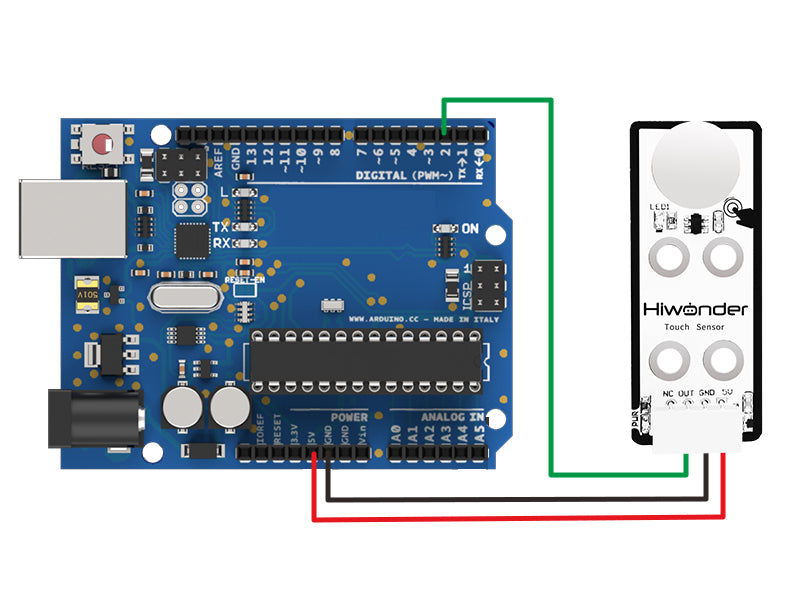

Arduino Connection

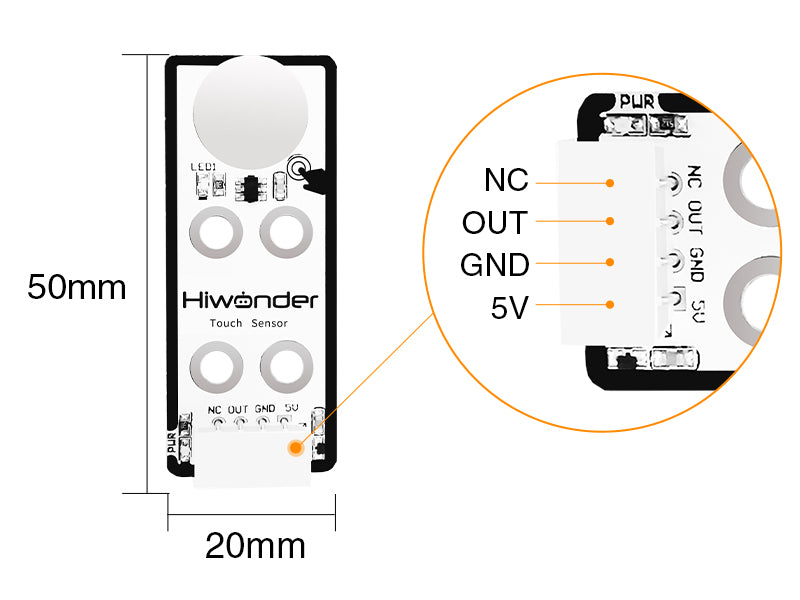

Dimension Drawing
Packing List
1* Touch sensor
1* 4PIN wire (20cm)
1* 4PIN wire (20cm)
| Item | Specification |
| Working voltage | DC 5V |
| Working current | 5mA |
| Port type | 5264-4AW |
| Size | 50mm x 20mm |
| PWR | Lighting up after powering |
| LED1 | Lighting up when the touch signal is sensed |
