Hiwonder HX-06L Serial Bus Servo With Double Shaft, 6KG Torque and Data Feedback Function

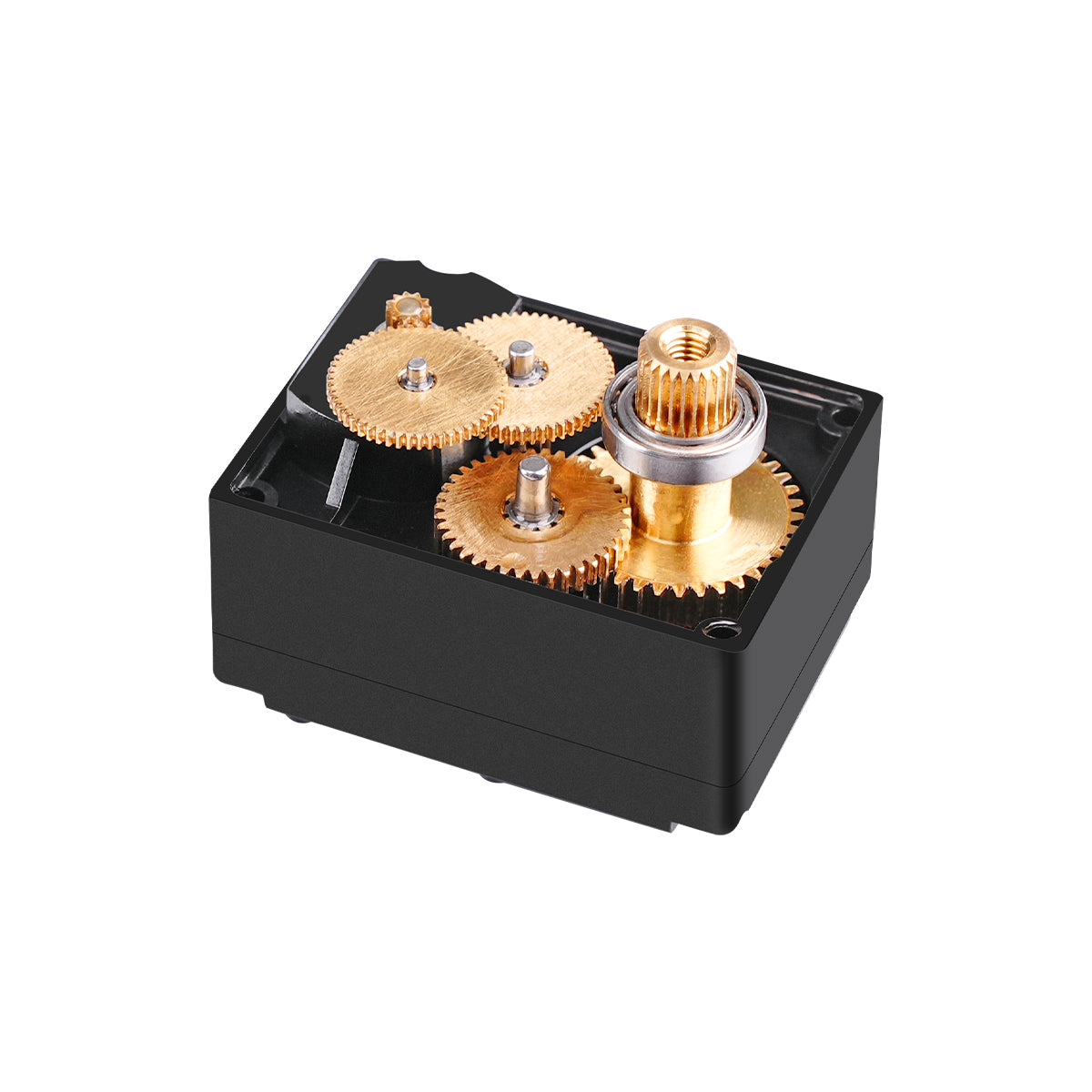

- Metal gear for higher accuracy and stronger torque
- Support temperature, voltage and position feedback
- Two working modes: servo mode and gear motor mode
- Provide 51, Arduino, STM32, Raspberry Pi source code
-
Small size and high accuracy
-
High-precision potentiometer for more stable operation
-
Support position/temperature/voltage feedback for protecting the servo from burning
-
Support two working modes, including servo mode and gear motor mode
-
Provide 51, Arduino, STM32, and Raspberry Pi control source code
1 x Metal main servo horn
1 x 3*8*4 metal bearing
1 x Plastic assistant servo horn
1 x Servo wire (20cm)
1 x Screws

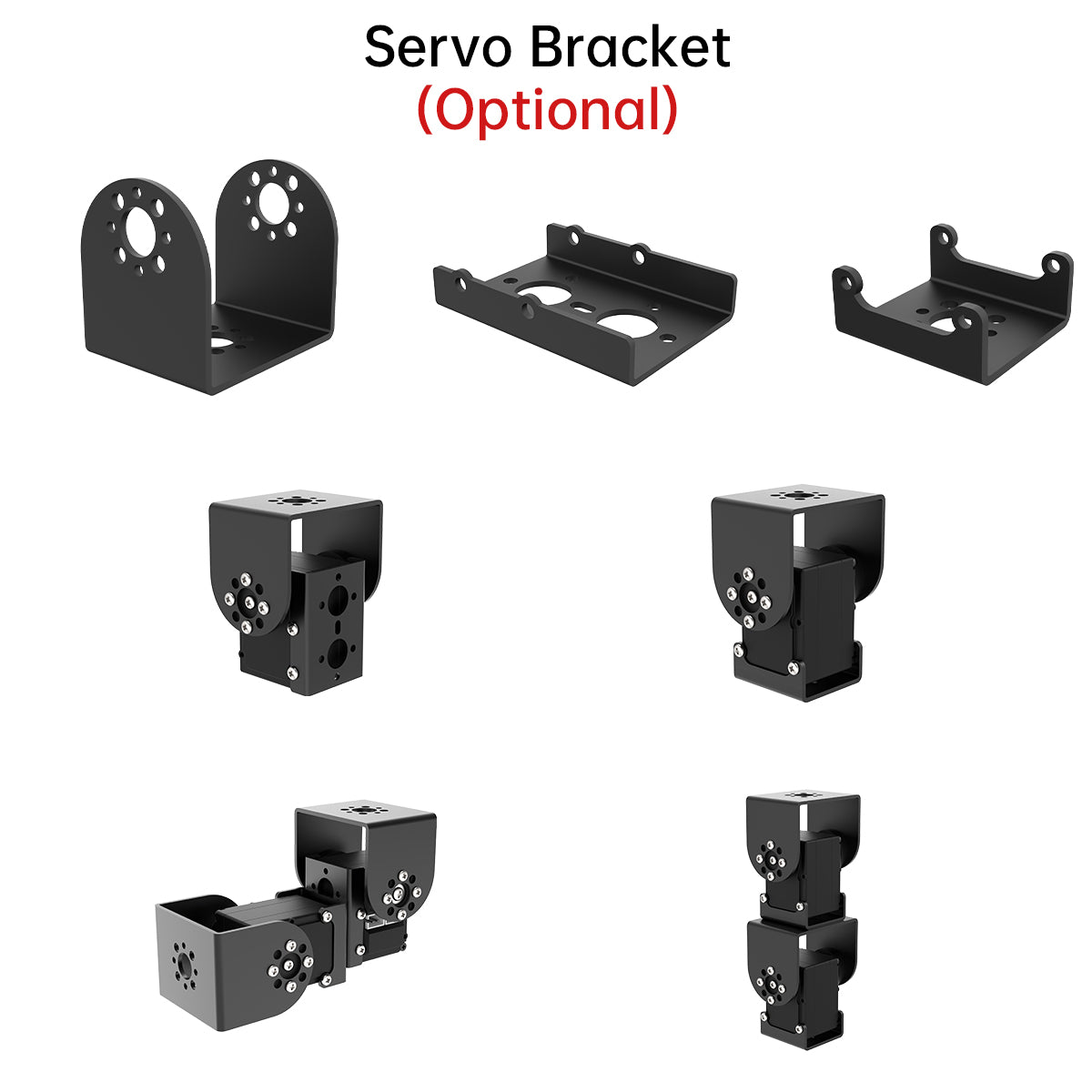

1 x Big U bracket (optional)
1 x Bottom bracket (optional)
1 x Side bracket (optional)
| Item | Specification |
| Name: | HX-06L intelligent serial bus servo |
| Brand: | Hiwonder |
| Weight: | 36.3g |

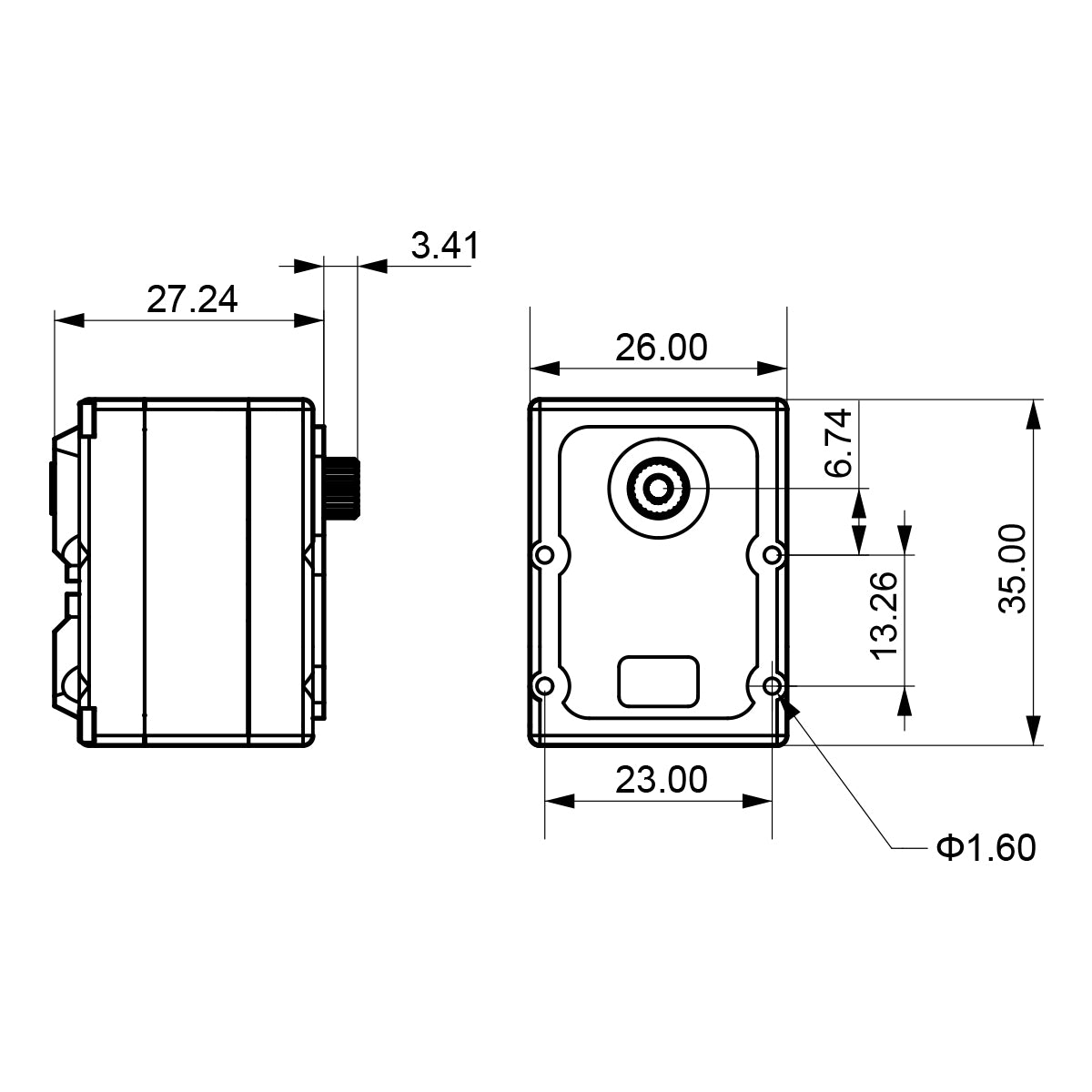

| Dimension: | 35.19×26.19×27.2mm |
| Working voltage: | 6-8.4V |
| Rotation speed: | 0.2sec/60°7.4V |
| Locked torque: | 6kg.cm 7.4V |
| Rotation range: | 0°-240° |
| No-load current: | 300mA |
| Stall current: | 1.3A |
| Servo accuracy: | 0.3° |
| Controllable angle range: | 0~1000, corresponding to 0~240° |
| Control method: | UART serial command |
| Communication baud rate: | 115200 |
| Storage: | Save data when power off |

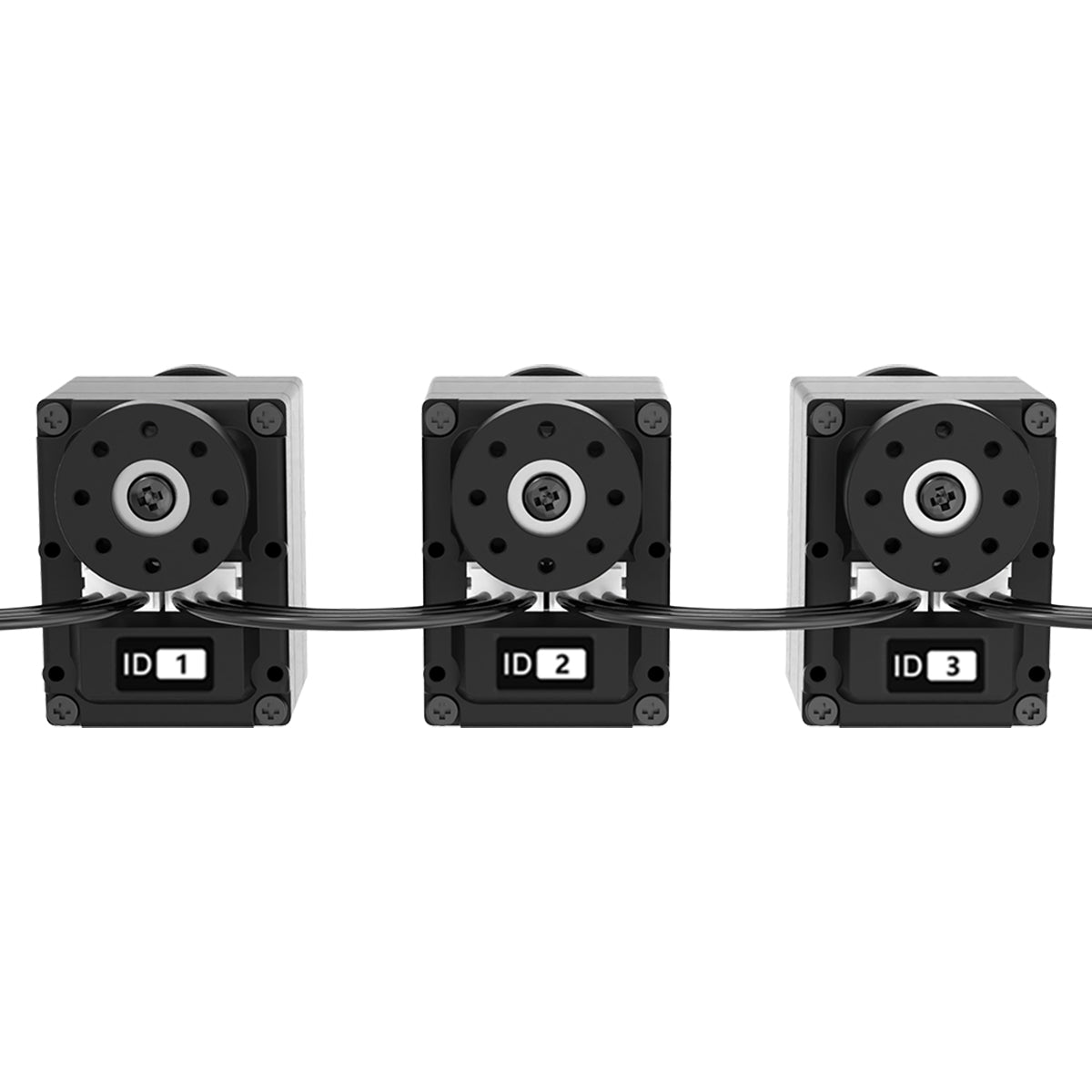

| Servo ID: | Can be set to 0~253, 1 by default |
| Angle read back function: | Support |
| Protection: | Avoid stalling and overheat |
| Date feedback: | Temperature, voltage, position |
| Working mode: | Servo mode and gear motor mode |
| Gear type: | Metal gear |
| Servo wire length: | 20cm |
| Connector: | 5264-3P |
| Applicable to: | Joints of bionic robots |
| Package List: | 1 x HX-06L servo 1 x Metal main servo horn 1 x 3*8*4 metal bearing 1 x Plastic assistant servo horn 1 x Servo wire (20cm) 1 x Screws 1 x Big U bracket (optional) 1 x Bottom bracket (optional) 1 x Side bracket (optional) |
QUESTIONS & ANSWERS
Ask a Question-
Dear Hiwonder customer support, I downloaded a data of this(HX-06L) servo to obtain 3d-cad data from here: https://drive.google.com/drive/folders/1yaZ8iRYgWncdHPopioo7OYuHoGhrMxCi but there seems no such data in it. (.dwg file exists, but this .dwg seems to be other servo motor's data.) It will be helpful if you can give me correct 3d data(.STEP) of HX-06L. Best regards, Kei Yoshizawa
Already uploaded: https://drive.google.com/drive/folders/1y0oBpzgUKgMUU5H3Wn31Y5CT9a0yUYz4?usp=drive_link
